IE-BI-USB-A
SKU: 1019570000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Front Com Vario combines several features into a single frame.
There is a large selection of data, signal, and power modules to choose from, and the system is simple to install.
In addition to being exceptionally compact, Front Com Vario has a number of unique product characteristics that will make project planning and work activities more safe, rapid, and future proof.
Additionally, the Front Com Vario system has a stylish housing design that satisfies all IP 65 protection class standards and gives the maximum impact resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:

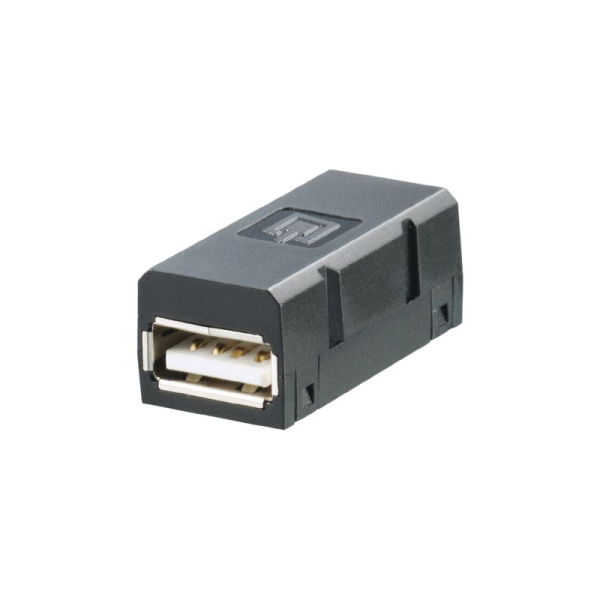

Version: USB insert, Flange insert, type A.
Quantity: 10.
Operating temperature: -40 °C...70.
Humidity: 0...93 % rel. humidity.
Insert type: Insert data Steady Tec.
Product type: USB insert.
Protection degree: IP67 with housing.
Connection 1: USB A.
Connection 2: USB A.
Description of article: Flange insert, type A.
Wiring: Type A.
Colour: black.
Humidity: 0...93 % rel. humidity.
Housing main material: PC UL 94 V0.
Shielding: 360 deg; all-round enclosure.
Protection degree: IP67 with housing.
Plugging cycles: ≥ 1500.
Electrical properties:
Contact resistance: ≤ 30 m Ω.
Current-carrying capacity up to 90 °C: 3 A.
Dielectric strength, contact / shield: ≥ 500 V DC.
Insulation strength: ≥ 1000 MΩ.
