SFC 3/21 MC NE WS
SKU: 1025260000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

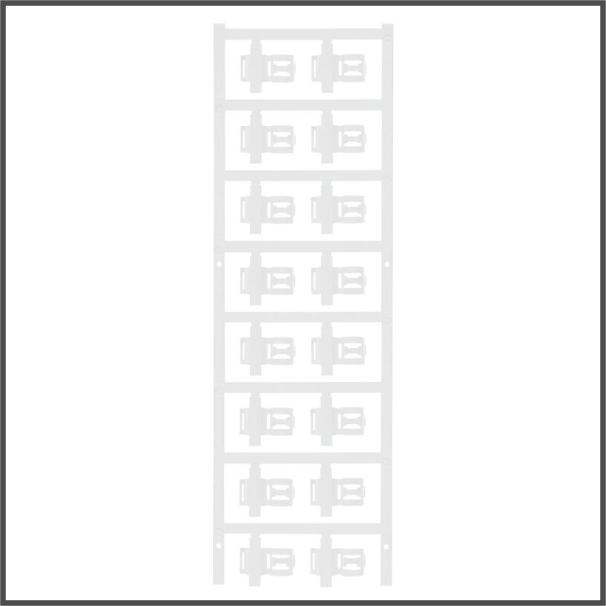

The Slim Fix Clip combines two benefits: its unique closure mechanism provides the dependability of a closed marker with the convenience of the installation of an open marker.
Even after the conductor has been put in place, the clip mechanism enables the marking to be quickly and easily attached.
Conductors and cables with an outer diameter of up to 5 mm can be used with Slim Fix Clips.
The broad marking surface (up to 30 mm) allows for extended character strings.
The substance conforms to flammability rating V2 and is halogen-free.
Buy currently uses Select Automation shop pricing and checkout.
Advantages:
Halogen-free material.
Flammability rating V2.
Fast installation without tools.
Markers in proven Multi Card format.
Available in the heights of 12 mm, 21 mm and 30 mm.
Specifications:
Version: Slim Fix, Conductor and cable markers.
Quantity: 80.
Depth: 11.3 mm.
Height: 12 mm.
Width: 12.5 mm.
Operating temperature range: -40...100 °C.
Colour: white.
No Halogen.
Material: Polyamide 66.
Material colour according to resistance code: 9.
Number of markers per combination: 1 Multi Card = Conductor and cable markers.
Size of labelling field: 12 x 5 mm.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Conductor and cable markers:
Conductor O.D.: 3.5 – 7 mm.
Conductor O.D., max.: 7 mm.
Conductor O.D., min.: 3.5 mm.
Conductor cross-section, max.: 10 mm².
Conductor cross-section, min.: 4 mm².
Cross-section for connected wire: 4 – 10 mm².
