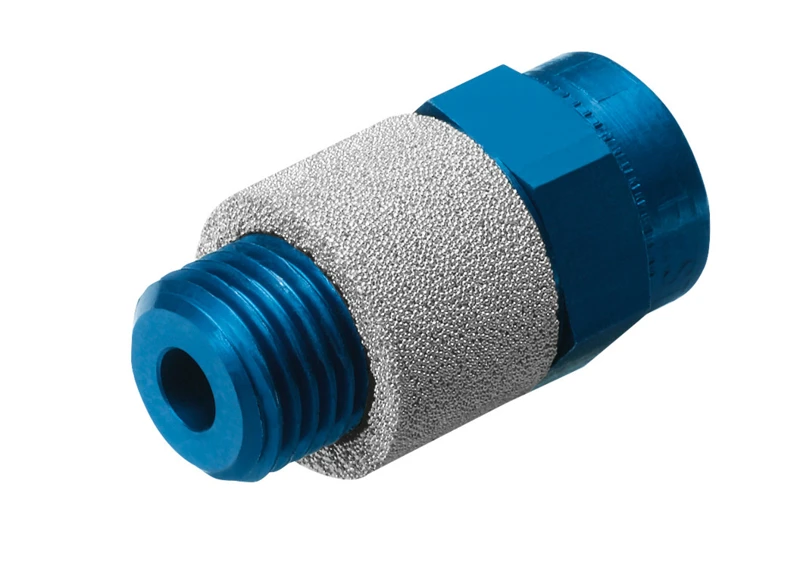

Exhaust air flow control valve, GRE-1/2

Specifications • Exhaust air flow control valves GRE • Valve function Sound pressure control function • Selection of additional functions With silencer • Pneumatic connection, port 1 G1/2 • Adjustment component Slotted head screw • Type of mounting Screw-in • Standard nominal flow rate in flow control direction 3600 l/min • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 0 l/min ... 4300 l/min • Operating pressure 0 bar ... 10 bar • temperature -10 °C ... 70 °C • Mounting position optional • Symbol 00991451 • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
