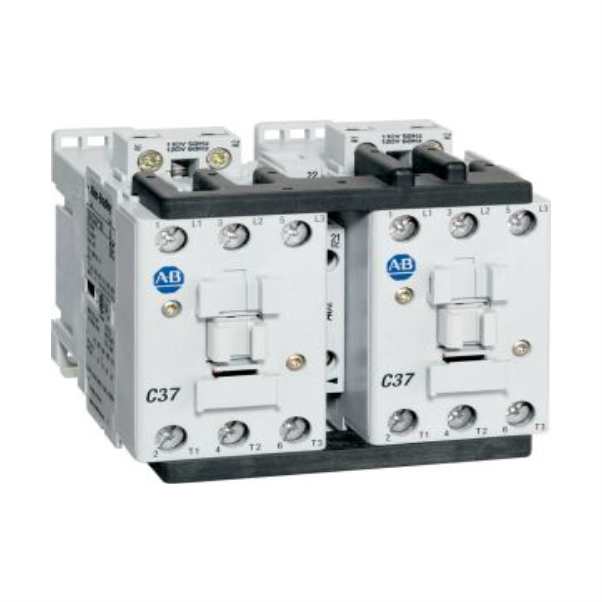

IEC 37 A Reversing Contactor 37A 24V DC 50/60Hz
SKU: 104-C37EJ22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Panel mounting or mounting on 35 mm DIN rail.
AC or DC coil control.
Reversible coil terminals (line or load side).
Common accessories.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Maximum Ampere Rating: 37A.
Electrical:
Voltage type for actuating: DC.
Rated control supply voltage at DC: 24V.
Current Max: 97A.
Main current circuit resistance: 2mΩ.
Contacts: 3 Power poles with internal NO or NC auxiliary contact or 4 Power poles (9 – 23A), Optional front-or-side mounted 1 – 2 or 4 – Pole external auxiliary contact block.
Function: Reversing contactor.
Rated coil frequency: AC 50/60Hz, DC.
Mechanical:
Type of electrical connection of main circuit: Screw connection.
Construction:
Optional overload relays: Electronic of bimetallic.
