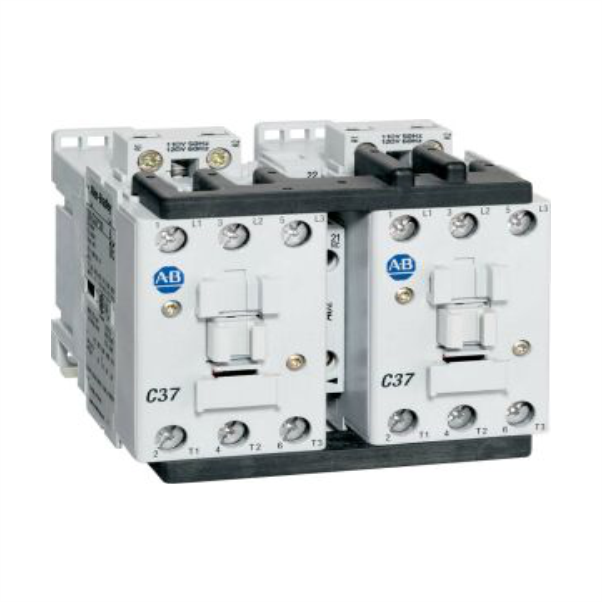

IEC 37 A Reversing Contactor 200 – 220V 50Hz / 208 – 240V 60Hz

Specifications: Coil code: 200 – 220V 50Hz / 208 – 240V 60Hz. Maximum Ampere Rating: 37A. Electrical: Voltage Type for actuating: AC. Rated control supply voltage at AC 50Hz: 200V. Rated control supply voltage at AC 60Hz: 208V. Current max: 97A. Main current circuit resistance: 2mΩ. Contacts: 3 Power poles with internal NO or NC auxiliary contact or 4 power poles (9 – 23A), Optional front-or side mounted 1 – 2 or 4 – pole external auxiliary contact block. Function: Reversing contactor. Rated coil frequency: AC 50/60 Hz, DC. Mechanical: Coil termination: Line side connection. Type of electrical contactor of main circuit: Screw connection. Construction: Optional overload relays: Electronic or Bimetallic. Environmental: Ambient Temperature: Storage: -55° to 80°C (-67 to 176°F).
