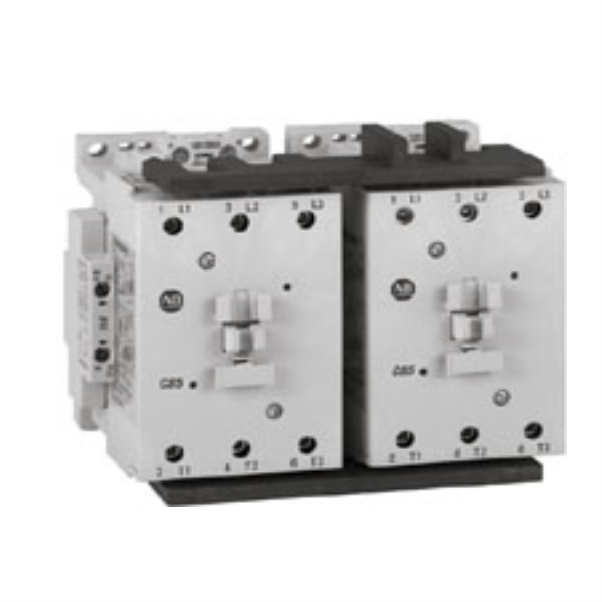

IEC 72 A Reversing Contactor 72A, 24V DC (w/Integrated Diode), 1 N.O. 1 N.C.
SKU: 104-C72DJ22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Panel mounting or mounting on 35 mm DIN rail.
AC or DC coil control.
Reversible coil terminals (line or load side).
Common accessories.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Coil Code: 24V DC with Integrated Diode.
Maximum Ampere Rating: 72A.
Electrical:
Voltage Type for actuating: DC.
Rated control supply voltage at DC: 24V.
Current Max: 97A.
Main current circuit resistance: 0.9mΩ.
Contacts: 3 Power poles with integrated NO or NC auxiliary contact or 4 power poles (9 – 23A), Optional front-or side mounted 1 – 2 or 4 – pole external auxiliary contact block.
Function: Reversing contactor.
Rated coil frequency: AC 50/60 Hz, DC.
Mechanical:
Coil Termination: Line side connection.
Type of electrical connection of main circuit: Screw connection.
Construction:
Optional Overload Relays: Electronic or Bimetallic.
