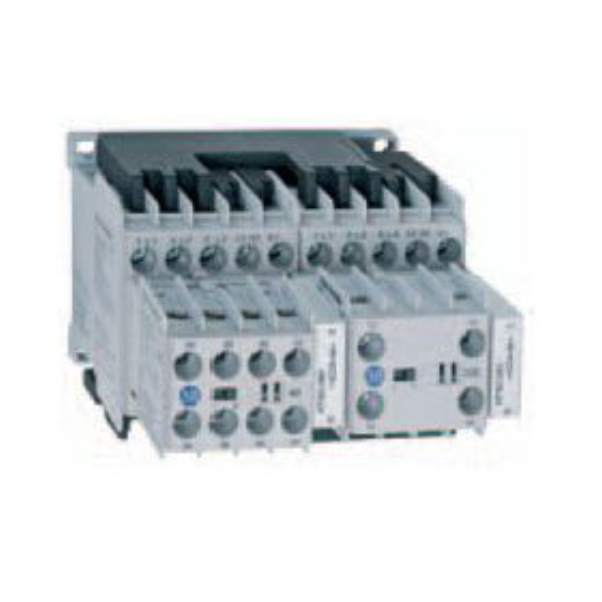

IEC Miniature Reversing Contactor 5A, 110V 50Hz/120V 60Hz, 3 N.O. Main, 1 N.C. Auxiliary
SKU: 104-K05D02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Mini contactors.
Uniform panel mounting dimensions.
Panel mounting or mounting on 35 mm DIN Rail.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Contactor size: 5A.
Electrical:
Voltage type for actuating: AC.
Rated control supply voltage at AC 50Hz: 110V.
Rated control supply voltage at AC 60Hz: 120V.
Rated control supply voltage at DC: 0V.
Current max: 12A.
Current rating: 5A.
Auxiliary contact configuration: 1NC.
Contacts: 3 Power poles with internal NC auxiliary contact.
Function: Reversing contactor.
Terminal Type: Screw terminal.
Rated Coil frequency: AC 50/60Hz, DC.
Mechanical:
Type of electrical connection of main circuit: Screw connection.
Environmental:
Ambient Temperature: Storage: -55° to 80°C (-67° to 176°F).
Optional overload relays: Bimetallic.
