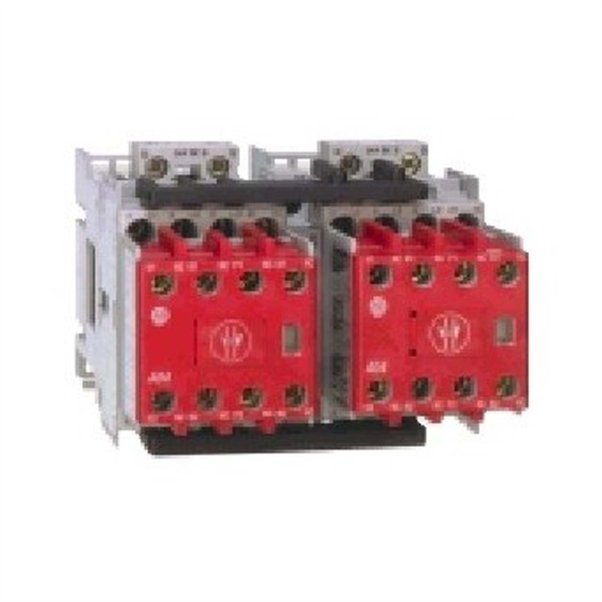

IEC 37 A SC Safety Contactor 37A, Line Side, 24V DC (w/Elec. Coil), 1 N.O. 5 N.C.
SKU: 104S-C37EJ210BC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Positively guided/mechanically linked auxiliary contacts.
Front-mounted auxiliary contacts: permanently fixed.
Protective cover to prevent manual ops.
Red contact housing for easy identification.
Incorporates IEC 947-5-1 “Mechanically Linked” symbol.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Auxiliary Contact Configuration: 1NO/5NC.
Coil Code: 24V 50/60Hz / 24V DC Elec CI.
Maximum Ampere Rating: 37A.
Electrical:
Voltage Type for Actuating: DC.
Rated control supply voltage at AC 50Hz: 0V.
Rated control supply voltage at AC 60Hz: 0V.
Rated control supply voltage at DC: 24V.
Current Max: 37A.
Contacts: 3 Main poles with NC mechanically linked or mirror feedback contents.
Function: Reversing contactor.
Rated coil frequency: AC 50/60Hz, DC.
Construction:
Width: 98.8mm.
Height: 80.77mm.
Depth: 135.47mm.
Auxiliary contact type: Bifurcated contact.
Mechanical:
Coil Termination: Line Side connection.
Type of electrical connection of main circuit: Screw connection.
Environmental:
Ambient Temperature: Storage: -55° to 80°C (-67° to 176°F).
