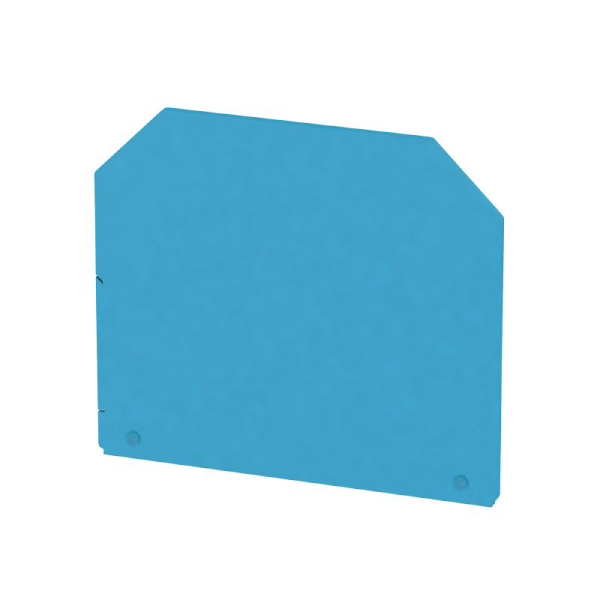

WAP 16+35 WTW 2.5-10 BL
SKU: 1050180000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WAP 16+35 WTW 2.5-10 BL:
End plates are installed on the open side of the last modular terminal before the end bracket.
Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
It protects against contact with live parts and ensures the end terminal is finger-proof.
Dimensions and weights:
Depth: 49.5 mm.
Depth (inches): 1.949 inch.
Height: 56 mm.
Height (inches): 2.205 inch.
Width: 1.5 mm.
Width (inches): 0.059 inch.
Net weight: 4.56 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60°C.
Continuous operating temp., max.: 130°C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: Blue.
UL 94 flammability rating: V-0.
System specifications:
Version: End plate.
Additional technical data:
Installation advice: Direct mounting.
Snap-on: No.
General:/P>
Installation advice: Direct mounting.
