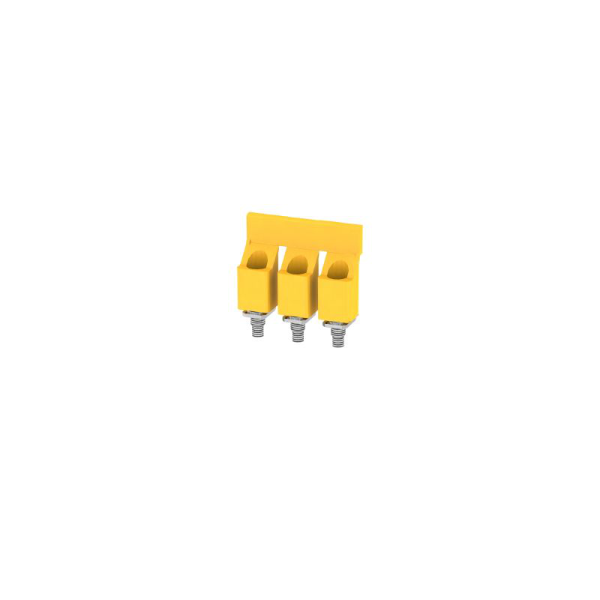

WQV 16/3
SKU: 1055160000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WQV 16/3:
Screwable cross-connections are straightforward to install and remove.
Due to the large contact surface, even high currents can be transmitted with optimal contact reliability.
Dimensions and weights:
Depth: 27 mm.
Depth (inches): 1.063 inch.
Height: 33.3 mm.
Height (inches): 1.311 inch.
Width: 10.4 mm.
Width (inches): 0.409ch.
Net weight: 11.02 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60 °C.
Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: PA 66.
Colour: yellow.
UL 94 flammability rating: V-0.
System specifications:
Version: For the terminals.
Additional technical data:
Installation advice: Direct mounting.
Type of fixing: when screwed in.
Cross-connector:
Number of cross-connected terminals: 3.
Rated current, 2-pole: 101 A.
Rated current, multi-pole: 101 A.
Tightening torque range for fixing screw: 1.2 – 2.4 Nm.
Type: Cross-connector.
Dimensions:
Pitch in mm (P): 11.9 mm.
General:
Installation advice: Direct mounting.
Number of poles: 3.
Rating data:
Rated current: 101 A.
