SFC 2.5/21 MC NE GE
SKU: 1062070000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

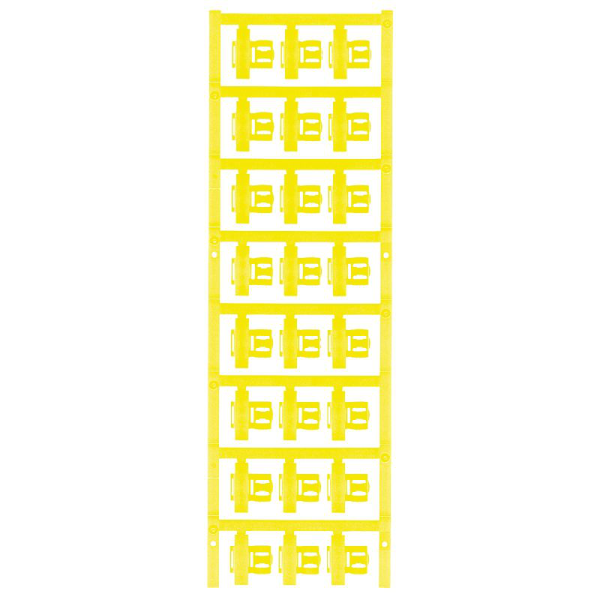

Slim Fix Clip Multi-Card:
A convenient clip system for wires and cables.
Highly durable markers with extra security:
The robust polyamide 66 used to make the halogen-free Slim Fix Clips combines two benefits into one unit.
They still give you the application-based security of a closed marker, but they can be fitted at every stage of the installation with the ease of an open marker thanks to their innovative clip closure.
The markers feature labelling surfaces that extend up to 30 mm, making them suitable for wire and cable widths ranging from 1.5 to 7.0 mm.
This allows ample room for lengthy, easily readable character strings, which may be printed onto the markers in multiple colours using the Print Jet Connect printer.
Buy currently uses Select Automation shop pricing and checkout.
Slim Fix Clip SFC – the benefits to you:
Compact: fits quickly and securely without the need for extra tools.
The large labelling surface for lengthy character strings is informative.
Powerful mixes of various sizes and colours.
Individual: Print Jet Connect can be used to print this.
Specifications:
Version: Slim Fix Clip, Conductor and cable markers.
Quantity: 120.
Depth: 9.1 mm.
Height: 21 mm.
Width: 9.3 mm.
Operating temperature range: -40...100 °C.
Colour: yellow.
No Halogen.
Material: Polyamide 66.
Material colour according to resistance code: 4.
Number of markers per combination: 1 multi-Card = Conductor and cable markers.
Size of labelling field: 12 x 5.8 mm.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Conductor and cable makers:
Conductor O.D.: 4 - 6 mm.
Conductor O.D., max.: 6 mm.
Conductor O.D., min.: 4 mm.
Conductor cross-section, max.: 10 mm².
Conductor cross-section, min.: 4 mm².
Cross-section for connected wire: 4 - 10 mm².
