WAH 35
SKU: 1064460000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

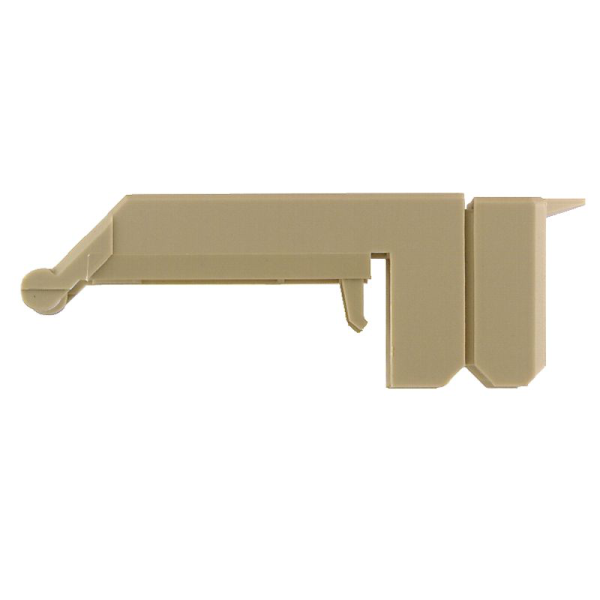

WAH 35:
The corresponding connection area of the terminal blocks have protective covers or protective caps affixed to them.
They offer defence against electric shock resulting from unintentional contact with live parts because of malfunctions or operation.
Dimensions and weights:
Depth: 22.6 mm.
Depth (inches): 0.89 inch.
Height: 63.5 mm.
Height (inches): 2.5 inch.
Width: 26 mm.
Width (inches): 1.024 inch.
Net weight: 4.918 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 100 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Polyamide 66.
Colour: beige.
UL 94 flammability rating: V-2.
Additional technical data:
Explosion-tested version: No.
Type of fixing: Snap-on.
Dimensions:
Pitch in mm (P): 27 mm.
