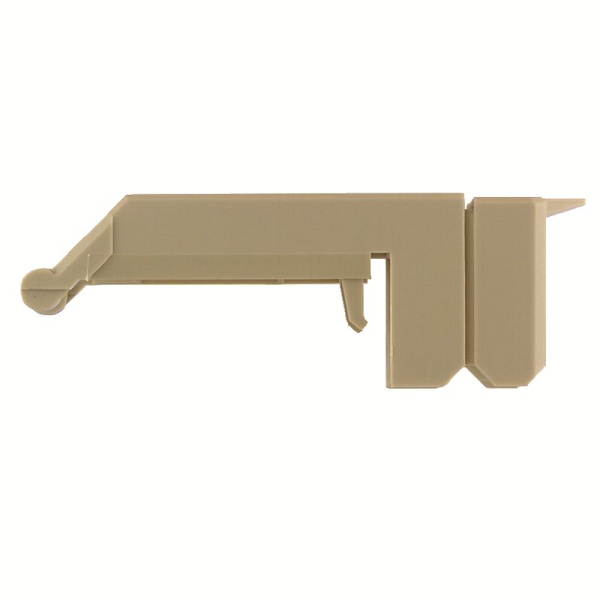

WAH 120:
The corresponding connection area of the terminal blocks have protective covers or protective caps affixed to them.
They offer defence against electric shock resulting from unintentional contact with live parts because of malfunctions or operation.
Dimensions and weights:
Depth: 34.5 mm.
Depth (inches): 1.358 inch.
Height: 110.25 mm.
Height (inches): 4.341 inch.
Width: 41 mm.
Width (inches): 1.614 inch.
Net weight: 15.66 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 100 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Polyamide 66.
Colour: beige.
UL 94 flammability rating: V-2.
Additional technical data:
Explosion-tested version: No.
Installation advice: Direct mounting.
Type of fixing: Snap-on.
Dimensions:
Pitch in mm (P): 42 mm.
General:
Installation advice: Direct mounting.
