WAH 185/300 BE
SKU: 1064760000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

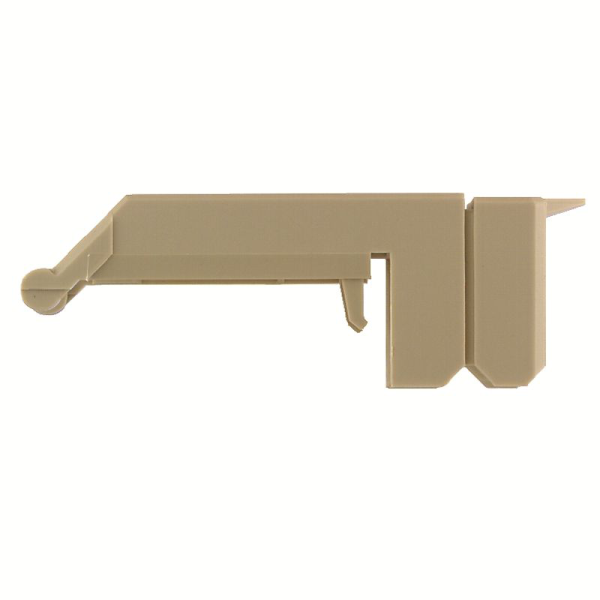

WAH 185/300 BE:
The corresponding connection area of the terminal blocks have protective covers or protective caps affixed to them.
They offer defence against electric shock resulting from unintentional contact with live parts because of malfunctions or operation.
Dimensions and weights:
Depth: 43.9 mm.
Depth (inches): 1.728 inch.
Height: 139 mm.
Height (inches): 5.472 inch.
Width: 54 mm
Width (inches): 2.126 inch.
Net weight: 25.5 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 100 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Polyamide 66.
Colour: beige.
UL 94 flammability rating: V-2.
Additional technical data:
Explosion-tested version: No.
Installation advice: Direct mounting.
Type of fixing: Snap-on.
Dimensions:
Pitch in mm (P): 55 mm.
General:
Installation advice: Direct mounting.
