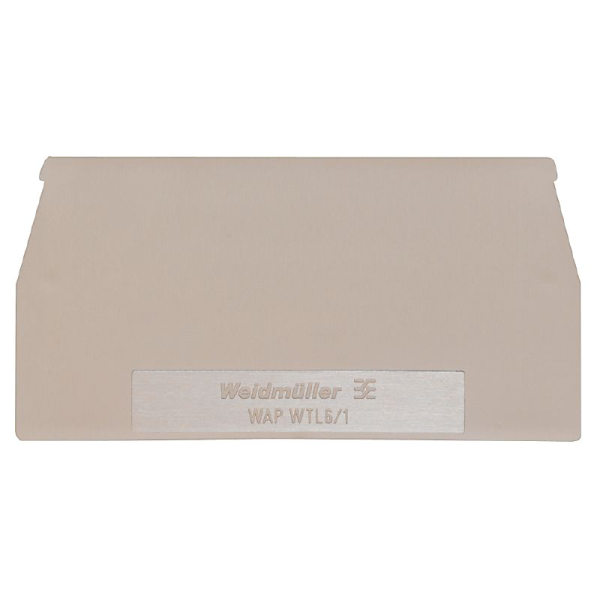

WAP WTL6/1
SKU: 1068300000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WAP WTL6/1:
Wiring for current and voltage transformers.
Our test disconnects terminal blocks with spring and screw connection technology enable you to build all the necessary converter circuits for measuring current, voltage, and power in a safe and sophisticated manner.
Dimensions and weights:
Depth: 34.5 mm.
Depth (inches): 1.358 inch.
Height: 65 mm.
Height (inches): 2.559 inch.
Width: 1.5 mm.
Width (inches): 0.059 inch.
Net weight: 3.785 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 120 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: Dark beige.
UL 94 flammability rating: V-0.
System specifications:
Version: End plate.
Additional technical data:
Installation advice: Feed-through (bushing), Direct mounting.
Snap-on: No.
General:
Installation advice: Feed-through (bushing), Direct mounting.
