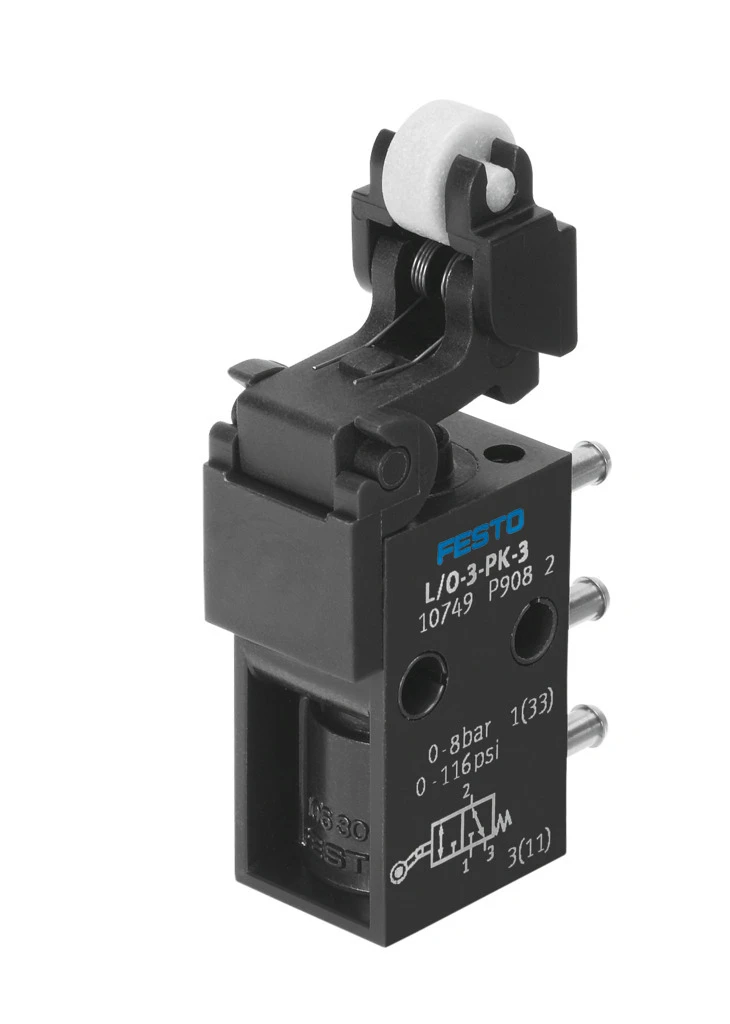

Toggle lever valve with idle return, L/O-3-PK-3

Specifications • Valves, mechanically actuated, Toggle lever valve with idle return • Valve function 3/2-way, monostable, open/closed • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 80 l/min • Pneumatic working port PK-3 • Operating pressure 0 bar ... 8 bar • Design Piston seat • Nominal size 2.5 mm • Type of piloting Direct • Symbol 00991833 • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C
