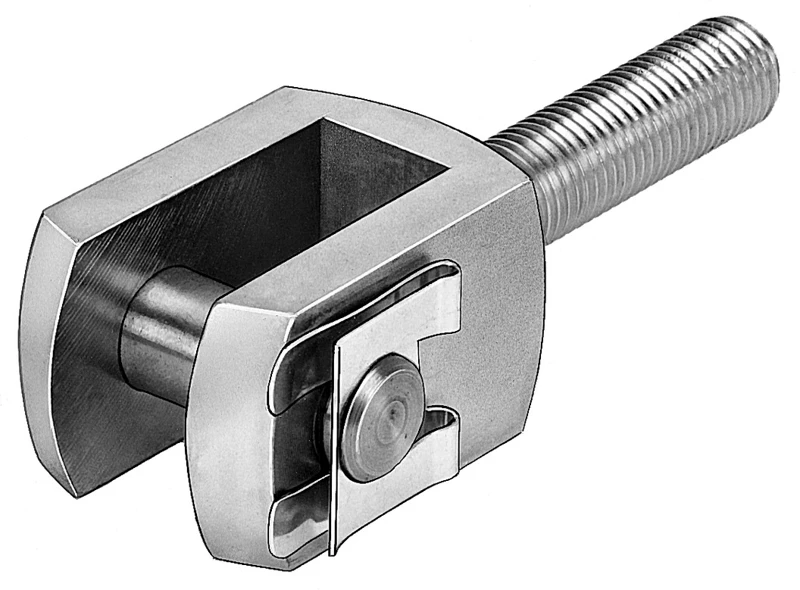

Standards-based cylinders DSBG, Accessories, Rod clevis, SGA-M36X2
SKU: 10771
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, to ISO 15552
• Accessories, Rod clevis
• Size M36x2
• Radial deviation +/- 5 mm
• Angle compensation +/- 120 deg
• Mounting position optional
• Threaded connection Male thread M36x2
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -40 °C ... 150 °C
• Product weight 3938 g
• Note on materials RoHS-compliant
• Material bolt Galvanised steel
• Material rod eye Steel Galvanised
• Material lock Spring steel, galvanised
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, to ISO 15552
• ISO 15552 (ISO 6431, VDMA 24562)
• Sturdy tie rod design
• For contactless position sensing
• Comprehensive range of accessories for just about every type of installation
• Optionally without sensing and without pneumatic end-position cushioning (price advantage)
