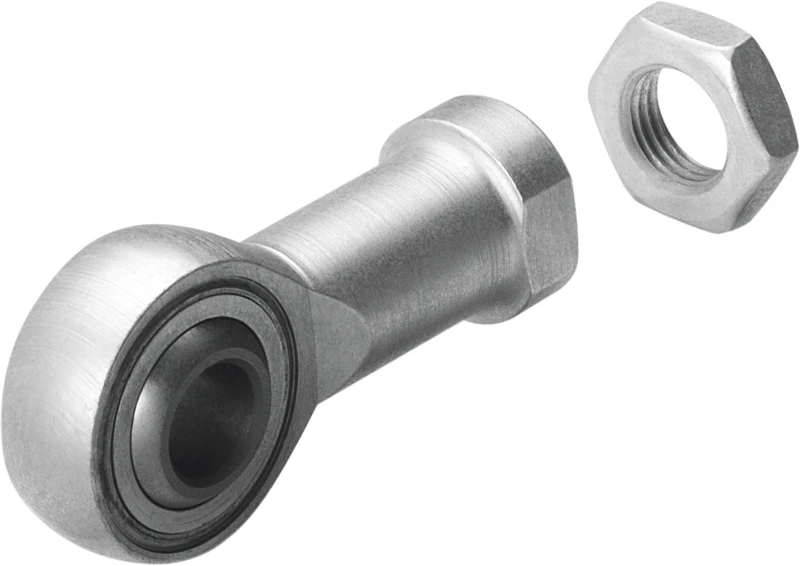

Standards-based cylinders DSBC, Accessories, Rod eye, SGS-M27X2
SKU: 10774
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, to ISO 15552
• Accessories, Rod eye
• Size M27x2
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -40 °C ... 150 °C
• Product weight 1339 g
• Note on materials RoHS-compliant
• Material of outer ring Brass
• Material housing Galvanised steel
• Material of inner raceway Steel
• Material nut Galvanised steel
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBC, to ISO 15552
• ISO 15552 (ISO 6431, VDMA 24562)
• Strokes of up to 2800 mm
• With self-adjusting pneumatic end-position cushioning PPS
• For position sensing
• Excellent flexibility thanks to the wide range of variants
• Comprehensive range of accessories for just about every type of installation
• Optionally with metal scraper
