KTO 011 Small Compact Thermostat, Contact breaker (NC), -10 to +50 °C, 250VAC
SKU: 11100.9-01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

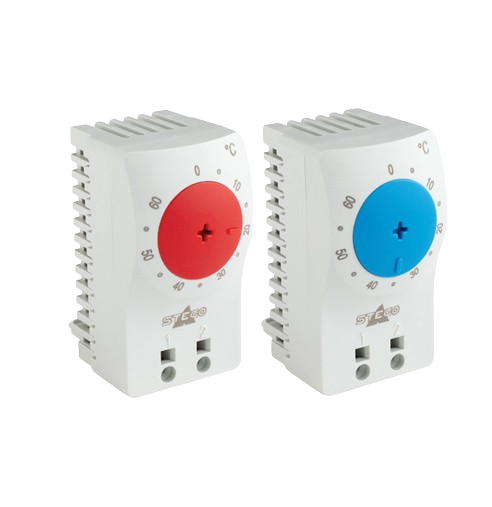

Thermostat KTO 011 Small Compact:
The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
The thermostat is wired without the need for a tool thanks to Push-In connectors.
The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
KTO 111: Thermostat (NC) with contact breaker for regulating heaters. An increase in temperature causes the contact to open.
Safe wiring with Push-In connection terminal.
Faster and tool-free wiring.
Improved air intakes for ventilation.
Easy adjustability of switch temperature setting.
for use in up to 5,000 m altitude.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Temperature Range: -49°F to 176°F (-45°C to 80°C).
Switch Temperature Difference: 12.6°F (7K).
Sensor Element: Thermostatic bimetal.
Contact Type: Normally Closed (NC).
Service Life: 100,000 cycles.
Operating Voltage: 250VAC max.
Frequency Range: 50-60Hz.
Mounting: 35mm DIN rail, EN 60715.
Material: Plastic according to UL94 V-0.
Dimensions: 60mm x 33mm x 41mm.
Protection Class: IP20 / Class II.
Features:
Adjustable Thermostat: Allows for precise temperature control.
Compact Design: Small and space-saving.
Easy Installation: Mounting clip for quick attachment to DIN rail.
Durable Construction: High-quality plastic casing.
Versatile Fitting Position: Can be installed in various orientations.
Reliable Performance: Verified for 100,000 cycles of operation.
