KTS 011 Small Compact Thermostat Contact maker (NO), 0 to +60 °C
SKU: 11101.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

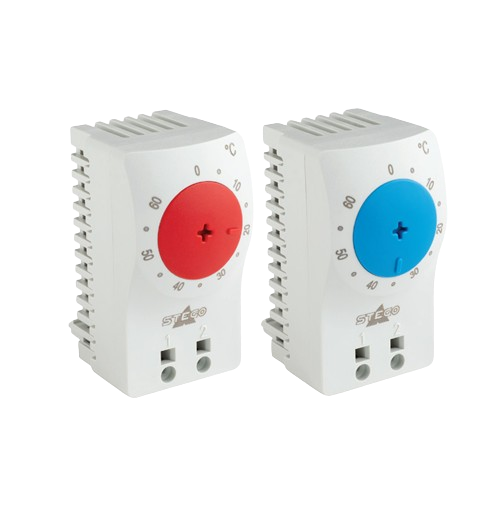

Thermostat KTS 011 Small Compact:
The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
The thermostat is wired without the need for a tool thanks to Push-In connectors.
The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
KTS 111: Thermostat (NO); contact maker used to regulate filter fans and heat exchangers, as well as to switch signal devices when a temperature limit is exceeded. An increase in temperature causes the contact to close.
Safe wiring with Push-In connection terminal.
Faster and tool-free wiring.
Improved air intakes for ventilation.
Easy adjustability of switch temperature setting.
for use in up to 5,000 m altitude.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Rating: 250V AC.
Current Rating: 10A.
Dimensions:
Height: 60 mm.
Width: 33 mm.
Depth: 41 mm.
Temperature Range: -45°C to +80°C.
Product Range: KTS 111 Series.
Features:
Normally Open (NO) Thermostat: Contact closes when temperature rises.
Push-In Connection Terminal: Allows for safe, tool-free wiring.
Optimized Air Gap: Enhances ventilation and increases creepage distance.
Adjustable Switch Temperature Setting: Easy to adjust.
Altitude Use: Suitable for use up to 5,000 meters.
Spring Clamps: Provides constant pressure on wires to prevent them from coming loose.
