KTS 011 Small Compact Thermostat, Contact maker (NO), -10 to +50 °C, 10A at 250VAC
SKU: 11101.9-01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

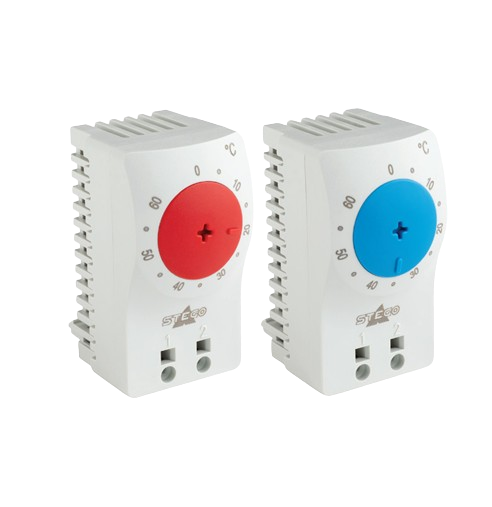

Thermostat KTS 011 Small Compact:
The mechanical thermostats KTO 111 and KTS 111 are two-state regulators that can be used at altitudes up to 5,000 meters due to an optimized air gap and increased creepage distance.
The thermostat is wired without the need for a tool thanks to Push-In connectors.
The Push-In terminals provide continual pressure on the wires to keep them from falling loose (for example, during transportation).
KTS 111: Thermostat (NO); contact maker used to regulate filter fans and heat exchangers, as well as to switch signal devices when a temperature limit is exceeded. An increase in temperature causes the contact to close.
Safe wiring with Push-In connection terminal.
Faster and tool-free wiring.
Improved air intakes for ventilation.
Easy adjustability of switch temperature setting.
for use in up to 5,000 m altitude.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Thermostat (NO - Normally Open).
Temperature Range: 32°F to 140°F (0°C to 60°C).
Switching Capacity: 10A at 250VAC.
Connection Type: Spring clamps.
Dimensions: 60mm x 33mm x 41mm.
Mounting: DIN rail.
Features:
Compact Design: Small and space-saving, ideal for use in confined spaces.
Adjustable Temperature Setting: Allows precise control over the temperature range.
High Switching Capacity: Suitable for regulating filter fans, heat exchangers, or switching signal devices.
Easy Installation: Spring clamp connections for quick and secure wiring.
Durable Construction: Built to withstand industrial environments.
