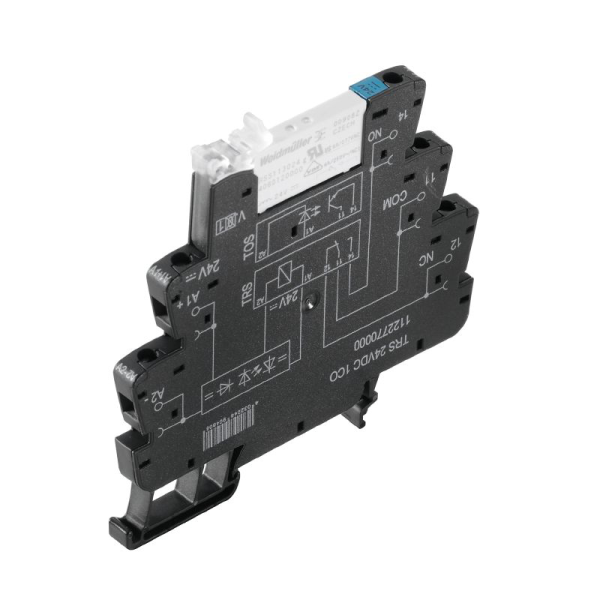

TRS 12VDC 1CO
SKU: 1122750000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
TRS 12VDC 1CO:
1 CO contact.
Contact material is AgNi.
Unique multi-voltage input from 24 to 230 V UC.
Input voltages range from 5 V DC to 230 V UC, with coloured markings: AC red, DC blue, and UC white.
Dimensions and weights:
Depth: 87.8 mm.
Depth (inches): 3.457 inch.
Height: 89.6 mm.
Height (inches): 3.528 inch.
Width: 6.4 mm.
Width (inches): 0.252 inch.
Net weight: 33 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -40 °C - 60 °C.
Humidity: 5-95% relative humidity, Tu = 40°C, without condensation.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9.
Buy currently uses Select Automation shop pricing and checkout.
Rated data UL:
Ambient temperature (operational), max.: 60 °C.
Connection cross-section AWG, min.: AWG 26.
Connection cross-section AWG, max.: AWG 14.
Type of conductor: rigid copper conductor, flexible copper conductor.
Tightening torque, max.: 0.4 Nm.
Pollution severity level: 2.
Control side:
Rated control voltage: 12 V DC ±20 %.
Rated current DC: 18 mA.
Power rating: 210 mW.
Status indicator: Green LED.
Protective circuit: Free-wheeling diode, Reverse polarity protection.
Coil voltage of the replacement relay deviating from the rated control voltage: No.
Coil voltage of the replacement relay: 12 V DC.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 6 A.
Max. switching frequency at rated load: 0.1 Hz.
Max. switching voltage, AC: 250 V.
Max. switching voltage, DC: 250 V.
Min. switching power: 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V.
Inrush current: 20 A / 20 ms.
AC switching capacity (resistive), max.: 1500 VA.
DC switching capacity (resistive), max.: 144 W @ 24 V.
Switch-on delay: ≤ 6 ms.
Switch-off delay: ≤ 8 ms.
Contact type: 1 CO contact (AgNi).
Mechanical service life: 5 x 106 switching cycles.
General data:
Operating altitude: ≤ 2000 m, above sea level.
Rail: TS 35.
Test button available: No.
Mechanical switch position indicator: No.
Colour: black.
UL94 flammability rating component:
Component: Housing.
UL94 flammability rating: V-0.
Component: Retaining clip.
UL94 flammability rating: V-0.
Insulation coordination:
Rated voltage: 300 V.
Pollution severity: 2.
Surge voltage category: III.
Clearance and creepage distances for control side - load side: ≥ 6 mm.
Dielectric strength for control side - load side: 4 kVeff / 1 Min.
Type of isolation at input and output: reinforced insulation.
Dielectric strength of open contact: 1 kVeff / 1 min.
Dielectric strength to mounting rail: 4 kVeff / 1 Min.
Impulse withstand voltage: 6 kV (1.2/50 µs).
Protection degree: IP20.
Further details of approvals / standards:
Certificate No. (DNV): TAA00001E5.
Certificate no. (cULus): E141197.
Connection data:
Wire connection method: Screw connection.
Stripping length, rated connection: 8 mm.
Tightening torque, max.: 0.4 Nm.
Clamping range, rated connection: 1.5 mm².
Clamping range, min.: 0.14 mm².
Clamping range, max.: 2.5 mm².
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section AWG, max.: AWG 14.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
Wire cross-section, solid, max. (AWG): AWG 14.
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.25 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
Wire cross-section, finely stranded, two clampable wires, max.: 1 mm².
Blade size: size PH0.
