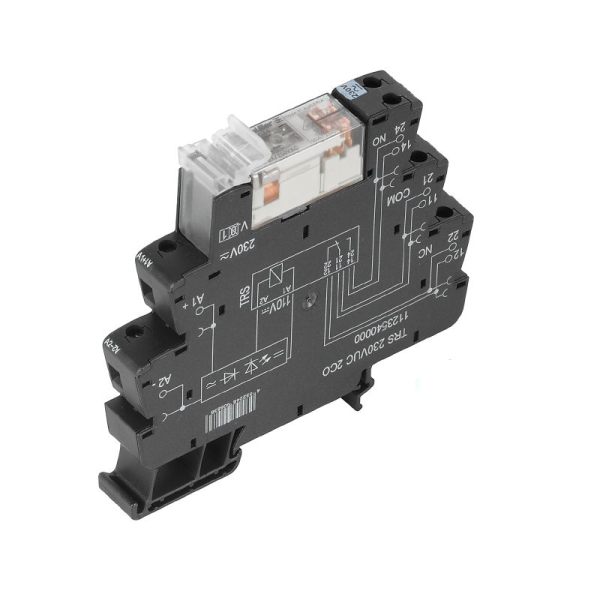

TRS 230VUC 2CO
SKU: 1123540000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
TRS 230VUC 2CO:
1 CO contact.
Contact material is AgNi.
Unique multi-voltage input from 24 to 230 V UC.
Input voltages range from 5 V DC to 230 V UC, with coloured markings: AC red, DC blue, and UC white.
Dimensions and weights:
Depth: 87.8 mm.
Depth (inches): 3.457 inch.
Height: 89.6 mm.
Height (inches): 3.528 inch.
Width: 12.8 mm.
Width (inches): 0.504 inch.
Net weight: 57 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -40 °C - 60 °C.
Humidity: 5-95% relative humidity, Tu = 40°C, without condensation.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9.
Buy currently uses Select Automation shop pricing and checkout.
Rated data UL:
Ambient temperature (operational), max.: 60 °C.
Output current derating (ohmic): 6 A @ 60 °C, 8 A @ 50 °C
Connection cross-section AWG, min.: AWG 26.
Connection cross-section AWG, max.: AWG 14.
Type of conductor: rigid copper conductor, flexible copper conductor.
Tightening torque, max.: 0.4 Nm.
Pollution severity level: 2.
Control side:
Rated control voltage: 230 V DC ±5 %.
Rated current AC: 5.5 mA.
Rated current DC: 4.4 mA.
Power rating: 1 W / 1.2 VA.
Status indicator: Green LED.
Protective circuit: Rectifier.
Coil voltage of the replacement relay deviating from the rated control voltage: Yes.
Coil voltage of the replacement relay: 110 V DC.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 8 A.
Max. switching frequency at rated load: 0.1 Hz.
Max. switching voltage, AC: 250 V.
Max. switching voltage, DC: 250 V.
Min. switching power: 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V.
Inrush current: 15 A / 4 ms.
AC switching capacity (resistive), max.: 2000 VA.
DC switching capacity (resistive), max.: 192 W @ 24 V.
Switch-on delay: ≤ 4.5 ms.
Switch-off delay: ≤ 16 ms.
Contact type: 2 CO contact (AgNi).
Mechanical service life: 30 x 106 switching cycles.
General data:
Operating altitude: ≤ 2000 m, above sea level.
Rail: TS 35.
Test button available: No.
Mechanical switch position indicator: No.
Colour: black.
UL94 flammability rating component:
Component: Housing.
UL94 flammability rating: V-0.
Component: Retaining clip.
UL94 flammability rating: V-0.
Insulation coordination:
Rated voltage: 300 V.
Pollution severity: 2.
Surge voltage category: III.
Clearance and creepage distances for control side - load side: ≥ 6 mm.
Dielectric strength for control side - load side: 3.51 kVeff / 1 Min.
Type of isolation at input and output: reinforced insulation.
Dielectric strength of neighbouring contacts: 2.5 kVeff / 1 Min.
Type of isolation at neighbouring contacts: Basic insulation.
Dielectric strength of open contact: 1 kVeff / 1 min.
Dielectric strength to mounting rail: 4 kVeff / 1 Min.
Impulse withstand voltage: 6 kV (1.2/50 µs).
Protection degree: IP20.
Further details of approvals / standards:
Certificate No. (DNV): TAA00001E5.
Certificate no. (cULus): E141197.
Connection data:
Wire connection method: Screw connection.
Stripping length, rated connection: 8 mm.
Tightening torque, max.: 0.4 Nm.
Clamping range, rated connection: 1.5 mm².
Clamping range, min.: 0.14 mm².
Clamping range, max.: 2.5 mm².
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section AWG, max.: AWG 14.
Wire cross-section, solid, min.: 0.14 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire cross-section, solid, min. (AWG): AWG 26.
Wire cross-section, solid, max. (AWG): AWG 14.
Wire connection cross section, finely stranded, min.: 0.14 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire cross-section, finely stranded, min. (AWG): AWG 26.
Wire cross-section, finely stranded, max. (AWG): AWG 16.
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.25 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
Wire cross-section, finely stranded, two clampable wires, max.: 1 mm².
Blade size: size PH0.
