SRD ECO 2CO
SKU: 1132810000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

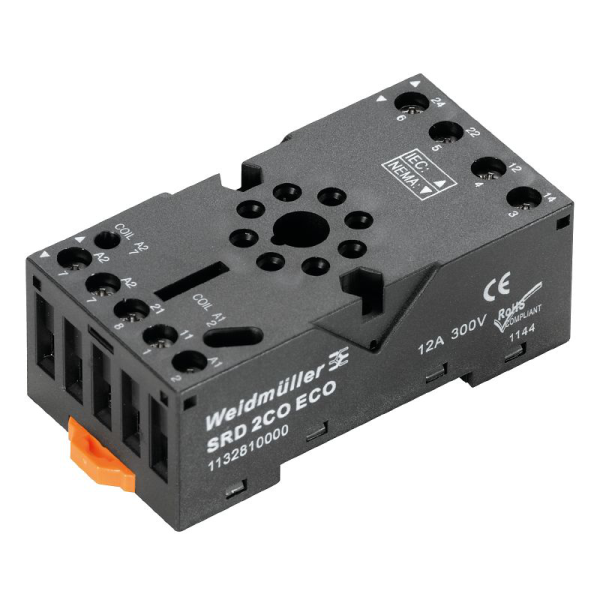

SRD ECO 2CO:
Relay sockets for D-SERIES DRR relays.
2 or 3 CO contacts.
screw connection.
Dimensions and weights:
Depth: 27 mm.
Depth (inches): 1.063 inch.
Height: 76.7 mm.
Height (inches): 3.02 inch.
Width: 38 mm.
Width (inches): 1.496 inch.
Net weight: 50 g.
Temperatures:
Storage temperature: -40 °C...85 °C.
Operating temperature: -40 °C...65 °C.
Humidity: 35...85 % rel. humidity, no condensation.
Environmental Product Compliance:
REACH SVHC: /.
Buy currently uses Select Automation shop pricing and checkout.
Rated data UL:
Certificate No. (cURus): E355547.
Load side:
Rated switching voltage: 250 V AC.
Continuous current: 12 A.
Max. switching voltage, AC: 300 V.
Contact type: 2 CO contact.
General data:
Rail: TS 35.
Colour: black.
UL94 flammability rating component:
Component: Housing.
UL94 flammability rating: V-2.
Component: Mounting foot.
UL94 flammability rating: HB.
Component: Retaining clip.
UL94 flammability rating: HB.
Insulation coordination:
Pollution severity: 2.
Surge voltage category: III.
Clearance and creepage distances for control side - load side: ≥ 4 mm.
Dielectric strength for control side - load side: 2.5 kVeff / 1 Min.
Dielectric strength of neighbouring contacts: 2.21 kVeff/ 1 min.
Impulse withstand voltage: 4.8 kV (1.2/50 µs).
Protection degree: IP20.
Further details of approvals / standards:
Certificate No. (cURus): E355547.
Connection data:
Wire connection method: Screw connection.
Stripping length, rated connection: 7 mm.
Tightening torque, min.: 0.5 Nm.
Tightening torque, max.: 1 Nm.
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire cross-section, solid, min.: 0.5 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 2.5 mm².
Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
Wire cross-section, finely stranded, two clampable wires, max.: 1 mm².
Blade size: size PH1.
Important note:
Product information:
For this socket, a cross connection is not available.
For this socket, markers are not available.
