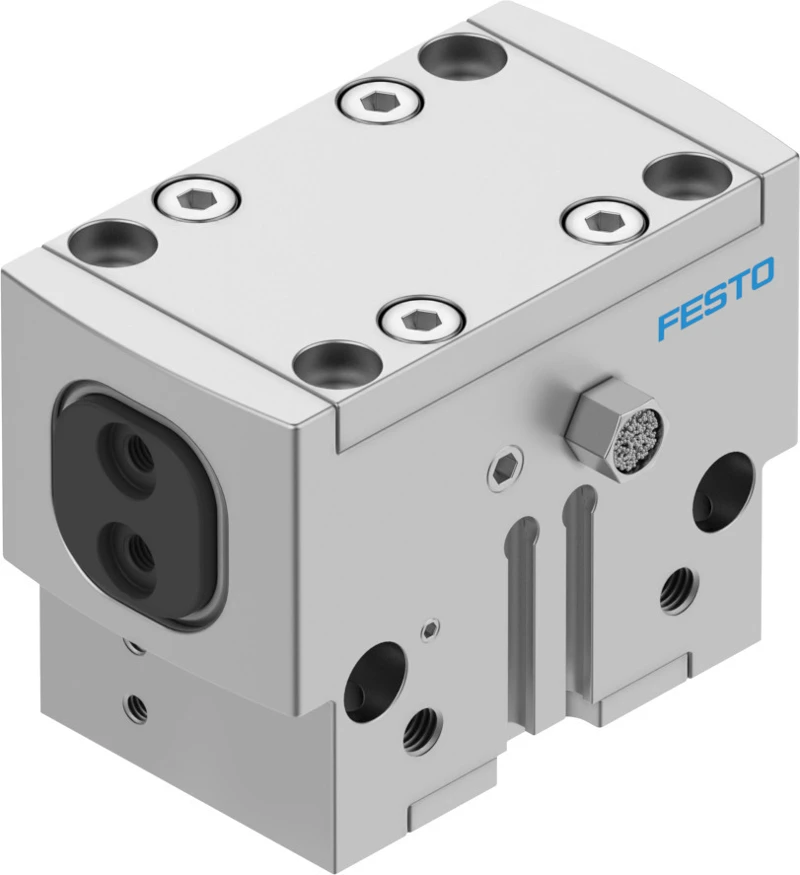

Parallel gripper, HGPD-25-A
SKU: 1132942
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel grippers HGPD, sealed
• Size 25
• Stroke per gripper jaws 6 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.1 deg
• Max. gripper jaw backlash Sz ≤0.02 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.04 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Mode of operation Double-acting
• Gripper function Parallel
• Gripper force back-up None
• Design Wedge-shaped drive, Force pilot operated motion sequence
• Position detection Via proximity switch
• Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) 133 N
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper HGPD
• Fully sealed grippers for harsh environments.
• With exterior and interior gripping.
• Ideal for very harsh environments
• Precise gripping even at high torque load
• Max. gripping force at optimum installation space/force ratio
• 8 sizes with total stroke of up to 40
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
