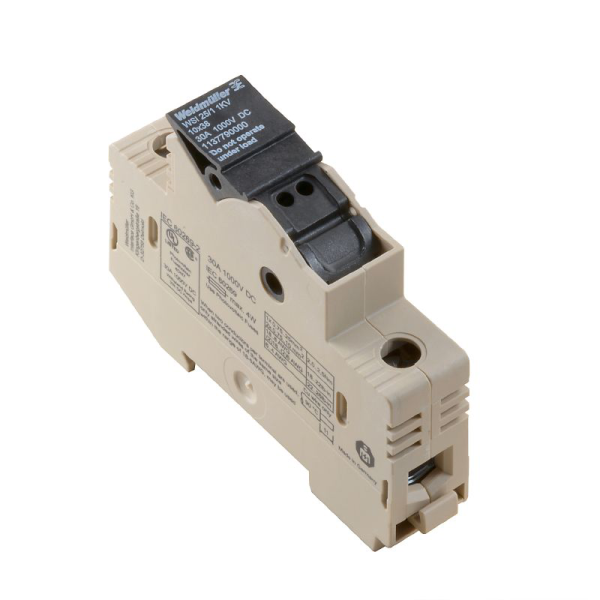

WSI 25/1 10x38 1KV
SKU: 1137790000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WSI 25/1 10X38 1KV:
In some cases, it is advantageous to protect the feed-through connection with a separate fuse.
Fuse terminal blocks consist of one terminal block bottom part and a fuse insertion carrier.
The fuses come in a variety of styles, including pivoting fuse levers, pluggable fuse holders, screwable closures, and flat plug-in fuses.
Dimensions and weights:
Depth: 58 mm.
Depth (inches): 2.283 inch.
Height: 81 mm.
Height (inches): 3.189 inch.
Width: 18 mm.
Width (inches): 0.709 inch.
Net weight: 50.917 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 120 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: PA 66/6.
Colour: dark beige.
UL 94 flammability rating: V-0.
System specifications:
Version: Screw connection, Fuse cartridge, with LED, in closed state.
End cover plate required: No.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 35.
N-function: No.
PE function: No.
PEN function: No.
2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):
Wire connection cross section, finely stranded, two clampable wires, min.: 0.75 mm².
Wire cross-section, finely stranded, two clampable wires, max.: 10 mm².
Additional technical data:
Open sides: closed.
Type of mounting: Snap-on.
Conductors for clamping (additional connection):
Connection type, additional connection: Screw connection.
Conductors for clamping (rated connection):
Clampable conductor:
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: solid, H05(07) V-U.
min.: 1.5 mm².
max.: 25 mm².
nominal: 25 mm².
wire end ferrule:
Stripping length:
min.: 11 mm.
max.: 11 mm.
nominal: 11 mm.
Tightening torque:
min.: 2 Nm.
max.: 2.5 Nm.
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: stranded, H07V-R.
min.: 1.5 mm².
max.: 25 mm².
nominal: 25 mm².
wire end ferrule:
Stripping length:
min.: 11 mm.
max.: 11 mm.
nominal: 11 mm.
Tightening torque:
min.: 2 Nm.
max.: 2.5 Nm.
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: flexible, H05(07) V-K.
min.: 1.5 mm².
max.: 25 mm².
nominal: 25 mm².
wire end ferrule:
Stripping length:
min.: 11 mm.
max.: 11 mm.
nominal: 11 mm.
Tightening torque:
min.: 2 Nm.
max.: 2.5 Nm.
Clamping range, max.: 25 mm².
Clamping range, min.: 1.5 mm².
Connection cross-section, stranded, max.: 25 mm².
Connection cross-section, stranded, min.: 1.5 mm².
Connection direction: on side.
Number of connections: 2.
Stripping length: 11 mm.
Tightening torque, max.: 2.5 Nm.
Tightening torque, min.: 2 Nm.
Type of connection: Screw connection.
Type of connection 2: Screw connection.
Wire connection cross section AWG, max.: AWG 4.
Wire connection cross section AWG, min.: AWG 18.
Wire connection cross section, finely stranded, max.: 25 mm².
Wire connection cross section, finely stranded, min.: 1.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 25 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 1.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 25 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 1.5 mm².
Wire connection cross-section, solid core, max.: 25 mm².
Wire connection cross-section, solid core, min.: 1.5 mm².
CSA rating data:
Certificate No. (CSA): 80153519.
Wire cross section max. (CSA): 8 AWG.
Wire cross section min. (CSA): 18 AWG.
Fuse terminals:
Current for fuse with semiconductor protection: 25 A.
Permitted power loss for fuse with semiconductor protection: 4.300000 W/ 10.000000 mm²/ 25.000000 A/.
Permitted power loss for the standard fuse variants: 3 W.
Power loss for fuse with semiconductor protection: 4.3 W.
Power loss, 1-pole: 0.3 W.
Power loss, 1-pole ; 2-pole ; 3-pole: 0.300000 W/ 0.600000 W/ 0.900000 W/.
Power loss, 2-pole: 0.6 W.
Power loss, 3-pole: 0.9 W.
Wire cross-section for fuse with semiconductor protection: 10 mm².
General:
Rail: TS 35.
Standards: IEC 60269-1.
Wire connection cross section AWG, max.: AWG 4.
Wire connection cross section AWG, min.: AWG 18.
Rating data:
Rated cross-section: 25 mm².
Rated voltage: 1,000 V.
Rated voltage to adjoining terminal: 1,000 V.
Rated DC voltage: 1,000 V.
Rated current: 30 A.
Current at maximum wires: 30 A.
Standards: IEC 60269-1.
Volume resistance according to IEC 60947-7-x: 0.32 mΩ.
Rated impulse withstand voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 3.23 W.
Pollution severity: 3.
UL rating data:
Certificate No. (UL): E355388.
Important note:
Product information: The voltage depends on the selected fuse element or the selected indicator light.
