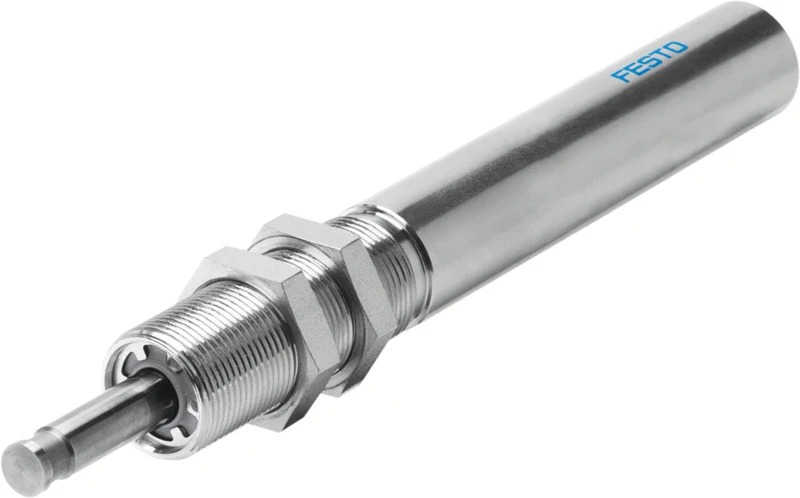

Hydraulic cushioning cylinder, DYHR-25-40-Y5
SKU: 1155694
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Hydraulic cushioning cylinder DYHR
• Size 25
• Stroke 40 mm
• Cushioning Adjustable
• Mounting position optional
• Mode of operation Pushing, Single-acting
• Position detection Without
• Max. impact speed 0.3 m/s
• Feed speed 0.2 mm/s ... 100 mm/s
• Reset time at room temperature 0.8 s
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature 0 °C ... 80 °C
Buy currently uses Select Automation shop pricing and checkout.
Hydraulic cushioning cylinder DYHR
• Constantly operating hydraulic cushioning cylinder with adjustable braking speed.
• Hydraulic cushioning cylinder for constant, slow braking speeds across the entire stroke
• Braking speed can be precisely adjusted
• A built-in compression spring returns the piston rod to the initial position
• Suitable for slow feed speeds in the range up to 0.1 m/s
