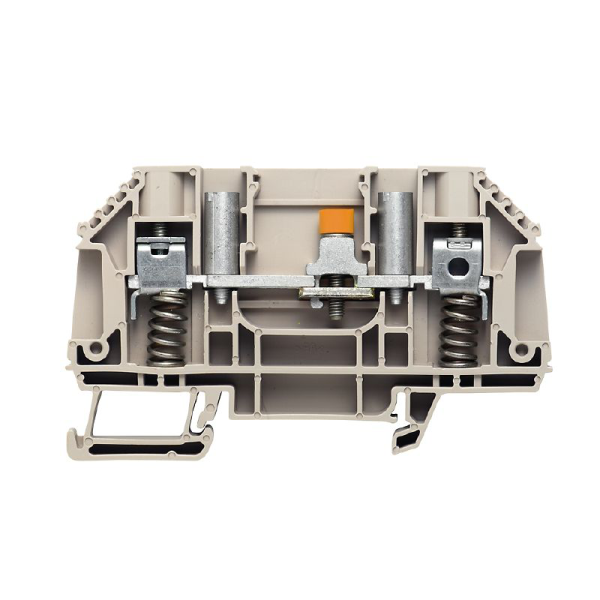

WTL 6 SL
SKU: 1161690000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Transformer wiring for current and voltage:
With the help of our test detach terminal blocks with screw and spring connection technology, you can make all the significant converter circuits for sophisticated and safe measurement of power, voltage, and current.
Material data:
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 50 mm
Depth including DIN rail: 50.5 mm
Height: 82.7 mm
Width: 7.9 mm
Net weight: 29.46 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Rating data:
Rated cross-section: 6 mm²
Rated voltage: 630 V
Rated DC voltage: 630 V
Rated current: 41 A
Current at maximum wires: 57 A
Standards: IEC 60947-7-1
Volume resistance according to IEC 60947-7-x: 0.78 mΩ
Rated impulse withstand voltage: 6 kV
Power loss in accordance with IEC 60947-7-x: 1.31 W
Pollution severity: 2
Surge voltage category: III
