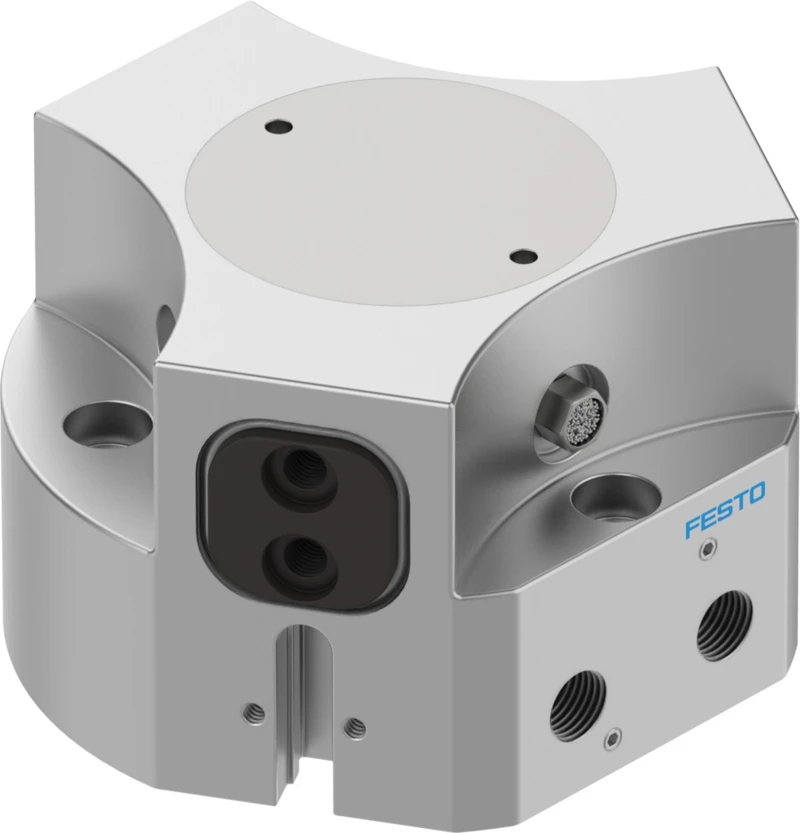

Three-point gripper, HGDD-50-A
SKU: 1163043
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Three-point gripper HGDD
• Size 50
• Stroke per gripper jaws 8 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.1 deg
• Max. gripper jaw backlash Sz ≤0.05 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.03 mm
• Number of gripper jaws 3
• Mounting position optional
• Mode of operation Double-acting
• Gripper function 3-point
• Design Wedge-shaped drive, Force pilot operated motion sequence
• Position detection Via proximity switch
• Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) 348 N
Buy currently uses Select Automation shop pricing and checkout.
Three-point gripper HGDD
• Fully sealed grippers for harsh environments.
• Exterior and interior gripping possible.
• Precise gripping with centric movements despite high torque loads
• Ideal for very harsh environments
• 5 sizes with stroke/jaw of up to 12 mm
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
