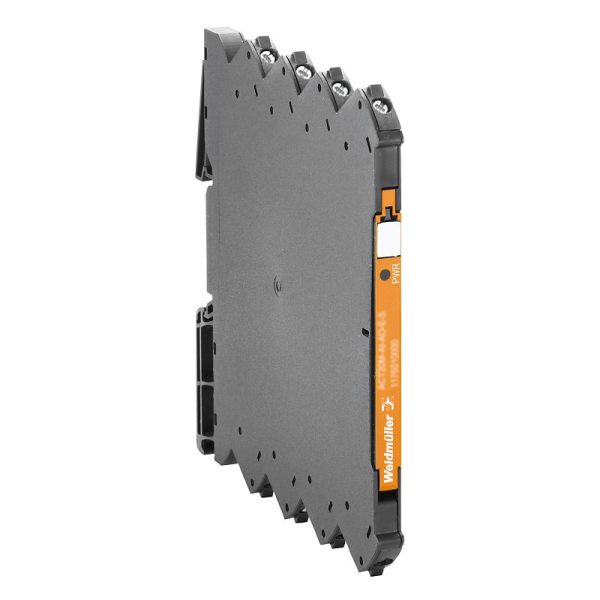

ACT20M-CI-2CO-S
SKU: 1175990000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ACT20M-CI-2CO-S:
The thin solution is ACT20M.
Safe and space-saving (6 mm) isolation and conversion.
Quickly install the power supply unit using the CH20M mounting rail bus.
Convenient configuration by DIP switch or FDT/DTM software.
extensive certifications from GL, DNV, ATEX, and IECEX.
high resistance to interference.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 114.3 mm.
Depth (inches): 4.5 inch.
Height: 112.5 mm.
Height (inches): 4.429 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 83.6 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -25 °C - 70 °C.
Humidity at operating temperature: 0 - 95 % (no condensation).
Humidity: 40 °C / 93 % rel. humidity, no condensation.
Probability of failure:
SIL in compliance with IEC 61508: None.
MTBF: 219 a.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2f6dd957-421a-46db-a0c2-cf1609156924.
Input:
Input current: 0 - 20 mA, 4 - 20 mA.
Input resistance, current: 70 Ω.
Number of inputs: 1.
Sensor: Current source, Sensor with own supply, 4-wire sensor.
Voltage drop, current input: <1.5 V.
Output:
Cut-off frequency (-3 dB): 100 Hz.
Load impedance current: <300 Ω per channel @ max 23mA.
Number of outputs: 2.
Output current: 0 - 20 mA, 4 - 20 mA.
Type: active, connected control must be passive.
General data:
Accuracy: <0.05 % of measuring range.
Configuration: none.
Galvanic isolation: 3-way isolator.
Power consumption, max.: 0.8 W.
Power consumption, typ.: 0.45 W.
Protection degree: IP20.
Rail: TS 35.
Step response time: ≤ 7 ms.
Temperature coefficient: ≤ 0.01 % / °C.
Voltage supply: 24 V DC ±30 % at terminal or via CH20M rail bus.
Insulation coordination:
EMC standards: IEC 61326-1.
Galvanic isolation: 3-way isolator.
Insulation voltage: 2.5 kVeff /1 min.
Pollution severity: 2.
Rated voltage: 300 Veff.
Surge voltage category: II.
Data for Ex applications (ATEX):
Installation location: Device installed in safe area, zone 2.
Marking: II 3 G Ex nA IIC T4 Gc.
Connection data:
Type of connection: Screw connection.
Tightening torque, min.: 0.4 Nm.
Tightening torque, max.: 0.6 Nm.
Clamping range, rated connection: 2.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire connection cross section AWG, min.: AWG 30.
Wire connection cross section AWG, max.: AWG 14.
EMC conformity and approvals:
EMC standards: IEC 61326-1.
Safety standard: UL 61010-1.
Ship use: DNV-GL.
Standards: ATEX, EN 60079-0, IECEX, IEC 60079-0.
Important note:
Product information:
The non-adjustable DC isolating amplifier ACT20M-CI-CO-S isolates analogue standard current signals.
An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated.
The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.
The non-adjustable DC isolation amplifier ACT20M CI-2CO-S offers the same functionality but has 2 galvanically isolated outputs (4-way isolation).
