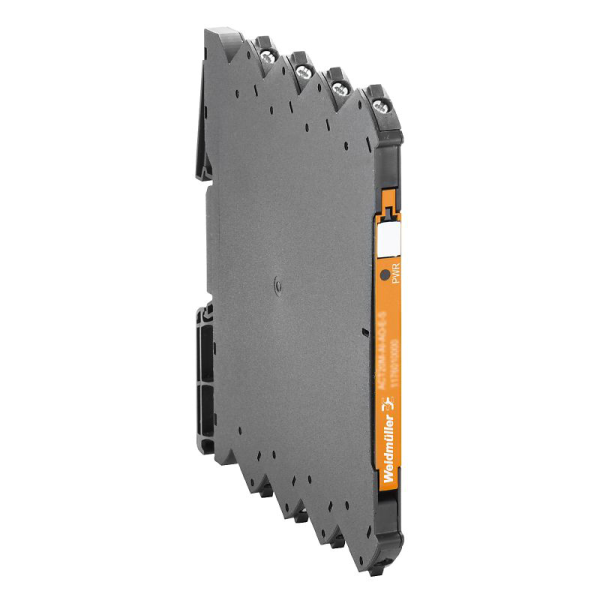

ACT20M-UI-AO-S
SKU: 1176030000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ACT20M-UI-AO-S:
The ACT20M-UI-AO-S, a software-configurable Universal Transmitter, divides and transforms common analogue signals.
An analogue input signal (voltage, current, resistance, potentiometer, RTD, or TC) is linearly and galvanically isolated to produce an analogue output signal.
The input may alternatively function as an active current loop.
This is accomplished by either direct wiring or the Weidmüller DIN Rail Bus, which provides three-way isolation between the power source and input and output.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 114.3 mm.
Depth (inches): 4.5 inch.
Height: 112.5 mm.
Height (inches): 4.429 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 80 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -25 °C - 70 °C.
Humidity at operating temperature: 0 - 95 % (no condensation).
Humidity: 40 °C / 93 % rel. humidity, no condensation.
Probability of failure:
SIL in compliance with IEC 61508: None.
MTBF: 176 a.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2f6dd957-421a-46db-a0c2-cf1609156924.
Input:
Input current: configurable, 0 - 20 mA, 4…20mA.
Input resistance, voltage: > 10 MΩ.
Input voltage:
Configurable.
0(2)…10 V.
0(1)…5 V.
0…1 V DC.
0,2…1 V DC.
Number of inputs: 1.
Potentiometer: 10…100 kΩ.
Resistance: 0…10 kΩ.
Sensor:
Thermocouples:
B / C / E / J / K / L / N / R / S / T / W3 / W5.
- 200 - + 2300 °C depending on thermocouple.
RTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000.
2-/3-/4-wire.
Sensor supply: > 15 V DC at 20 mA.
Temperature input range:
Configurable.
min. measurement range 10°C (RTD).
N: (-180…+1300 °C).
R: (-50…+1760 °C).
S: (-50…+1760 °C).
T: (-200…+400 °C).
U: (-200…+600 °C).
W3: (0…+2300 °C).
W5: (0…+2300 °C).
LR: (-200…+800 °C).
Details under Downloads "Measuring range Table ACT20M-UI-AO".
min. measurement range 50°C (TC), PT100: -200°C…850 °C, NI100: -60°C…+250 °C,
TC type:
B (0…+1820 °C).
E: (-100…+1000 °C).
J: (-100…+1200 °C).
K: (-180…+1372 °C).
L: (-200…+900 °C).
Voltage drop, current input: <3 V.
Output:
Cut-off frequency (-3 dB): 100 Hz.
Load impedance current: ≤ 600 Ω, @ max 28mA.
load impedance voltage: ≥ 10 kΩ.
Number of outputs: 1.
Output current:
configurable.
0 - 20 mA.
4 - 20 mA.
20…0 mA.
20…4 mA.
downscale (3,5 mA).
upscale (23 mA).
in case of sensor error.
Output voltage, note:
configurable.
0(2) - 10 V.
0(1) - 5 V.
0(0,2)…1 V.
1…(0,2)0 V.
5…(1)0 V.
10…(2)0 V.
downscale (0 V).
upscale (11 V).
in case of sensor error.
Type: active, connected control must be passive.
Wire break detection: Yes, if using RTD / POT / TC.
General data:
Accuracy: <0.1 % of measuring range.
Configuration: With FDT/DTM software, Requires configuration adapter 8978580000 CBX200 USB.
Galvanic isolation: 3-way isolator.
Power consumption, max.: 1.2 W.
Power consumption, typ.: 0.84 W.
Protection degree: IP20.
Rail: TS 35.
Step response time: 400 ms (10 - 90%) @ U/I, 1 s @ temp.
Temperature coefficient: ≤ 0.01 % / °C.
Voltage supply: 24 V DC ±30 % at terminal or via CH20M rail bus.
Insulation coordination:
EMC standards: IEC 61326-1.
Galvanic isolation: 3-way isolator.
Insulation voltage: 2.5 kVeff /1 min.
Pollution severity: 2.
Rated voltage: 300 Veff.
Surge voltage category: II.
Data for Ex applications (ATEX):
Installation location: Device installed in safe area, zone 2.
Marking: II 3 G Ex nA IIC T4 Gc.
Connection data:
Type of connection: Screw connection.
Tightening torque, min.: 0.4 Nm.
Tightening torque, max.: 0.6 Nm.
Clamping range, rated connection: 2.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire connection cross section AWG, min.: AWG 30.
Wire connection cross section AWG, max.: AWG 14.
EMC conformity and approvals:
EMC standards: IEC 61326-1.
Standards: IEC 61010-1.
