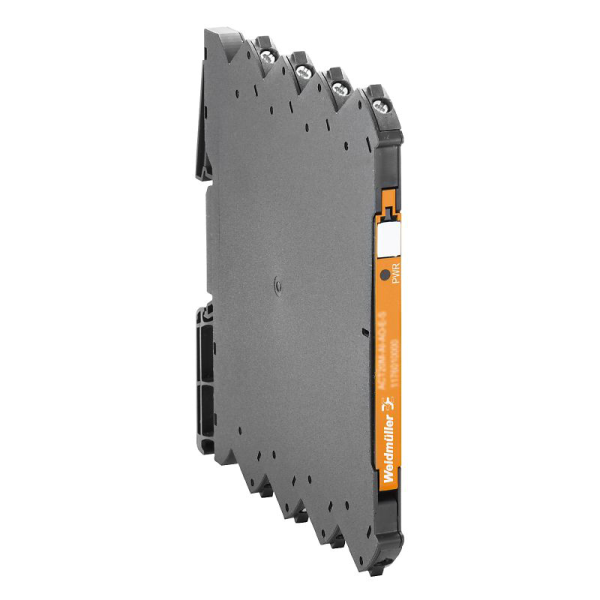

ACT20M-2CI-2CO-OLP-S
SKU: 1176050000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ACT20M-2CI-2CO-OLP-S:
ACT20M: the slim solution.
Safe and space-saving (6 mm) isolation and conversion.
The power supply unit can be quickly installed by using the CH20M mounting rail bus.
Convenient configuration by DIP switch or FDT/DTM software.
extensive certifications from GL, DNV, ATEX, and IECEX.
high resistance to interference.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 114.3 mm.
Depth (inches): 4.5 inch.
Height: 112.5 mm.
Height (inches): 4.429 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 96 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -25 °C - 70 °C.
Humidity at operating temperature: 0 - 95 % (no condensation).
Humidity: 40 °C / 93 % rel. humidity, no condensation.
Probability of failure:
SIL in compliance with IEC 61508: None.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2f6dd957-421a-46db-a0c2-cf1609156924.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 7a, 7cI.
Input:
Input current: 4…20mA.
Number of inputs: 2.
Sensor: 2-wire transmitter (without own power supply).
Sensor supply: 6…35 V (@ 20 mA).
Voltage drop, current input: Typical 2.5 V.
Output:
Cut-off frequency (-3 dB): 100 Hz.
Load impedance current: ≤ 600 Ω, @ max 23mA.
Number of outputs: 2.
Output current: 4 - 20 mA.
Supply voltage (output): 6…35 V.
Type: passive, connected control must be active.
General data:
Accuracy: <0.05 % of measuring range.
Configuration: none.
Galvanic isolation: 2-way isolator.
Power consumption, max.: 50 mW.
Power consumption, typ.: 50 mW.
Protection degree: IP20.
Rail: TS 35.
Step response time: ≤ 5 ms.
Temperature coefficient: ≤± 0.07 µA x (Δ °C x V supply) @ Tamb <25 °C, ≤±0.02 µA x (Δ °C x V supply) @ Tamb > 25 °C.
Voltage supply: Output loop powered.
Insulation coordination:
EMC standards: EN 61326-1.
Galvanic isolation: 2-way isolator.
Insulation voltage: 2.5 kVeff /1 min.
Pollution severity: 2.
Rated voltage: 300 Veff.
Surge voltage category: II.
Data for Ex applications (ATEX):
Installation location: Device installed in safe area, zone 2.
Marking: II 3 G Ex nA IIC T4 Gc.
Connection data:
Type of connection: Screw connection.
Tightening torque, min.: 0.4 Nm.
Tightening torque, max.: 0.6 Nm.
Clamping range, rated connection: 2.5 mm².
Clamping range, min.: 0.5 mm².
Clamping range, max.: 2.5 mm².
Wire connection cross section AWG, min.: AWG 30.
Wire connection cross section AWG, max.: AWG 14.
EMC conformity and approvals:
EMC standards: EN 61326-1.
Standards: IEC 61010-1.
Important note:
Product information:
The passive isolator ACT20M-CI-CO-OLP-S isolates standard analogue current signals.
An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated.
Power is supplied through the output measuring circuit (output loop-powered).
