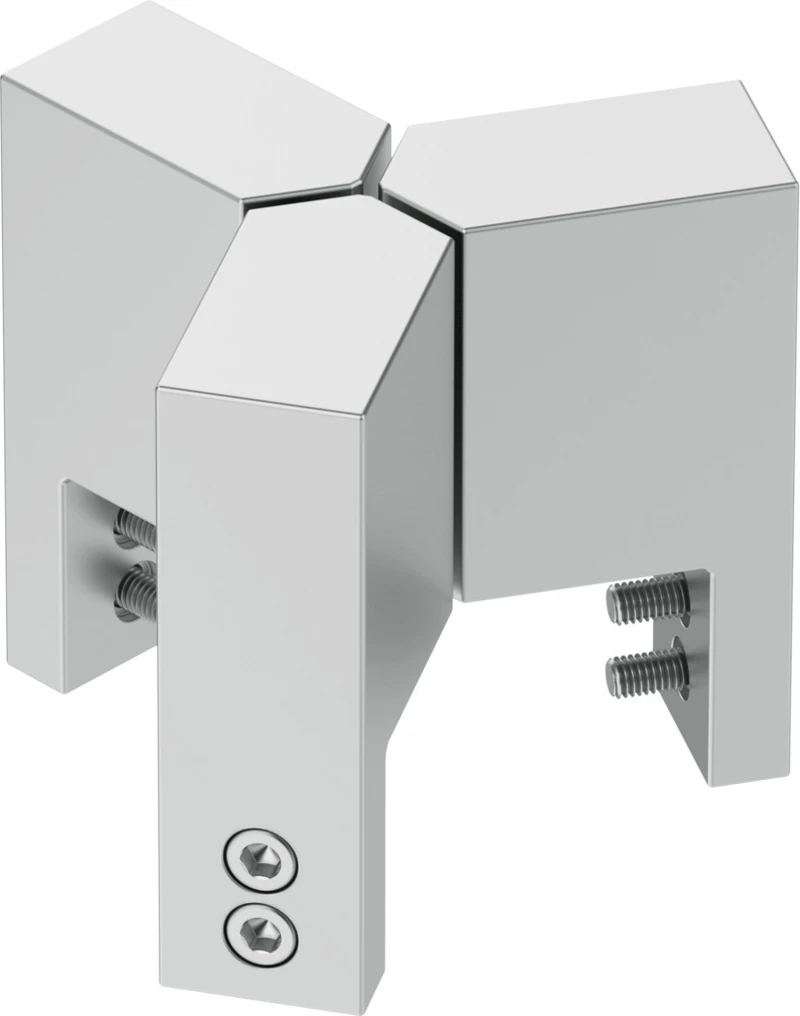

Gripper jaw blank, BUB-HGDD-50
SKU: 1180957
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Three-point gripper HGDD
• Accessories, Gripper jaw blank BUB-HGDD
• Size 50
• Mounting position optional
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature 5 °C ... 60 °C
• Product weight per gripper jaw 276 g
• Type of mounting Via through-hole and centring sleeve
• Note on materials RoHS-compliant
• Material unmachined part Wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Three-point gripper HGDD
• Fully sealed grippers for harsh environments.
• Exterior and interior gripping possible.
• Precise gripping with centric movements despite high torque loads
• Ideal for very harsh environments
• 5 sizes with stroke/jaw of up to 12 mm
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
