TW AKZ GN
SKU: 1190350000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

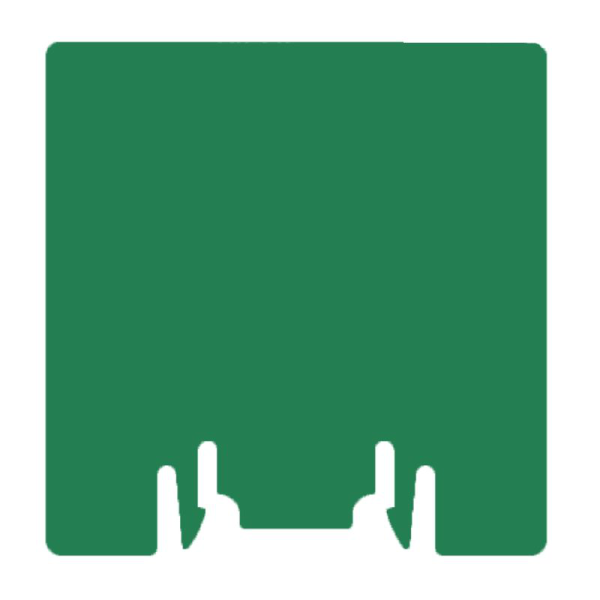

TW AKZ GN:
A partition plate can be utilized for electrical isolation from nearby cross-connectors or for the visual separation of circuits.
The contour may be larger than the nearby terminal blocks, in contrast to the end plate.
Still, It shouldn't be any smaller because doing so would make the application's necessary clearance and creepage distance can no longer be maintained.
Material data:
Material: Wemid
Colour: green
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 38 mm
Height: 37 mm
Width: 2 mm
Net weight: 3 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
