KTB MH 303015 S4E1
SKU: 1194710000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

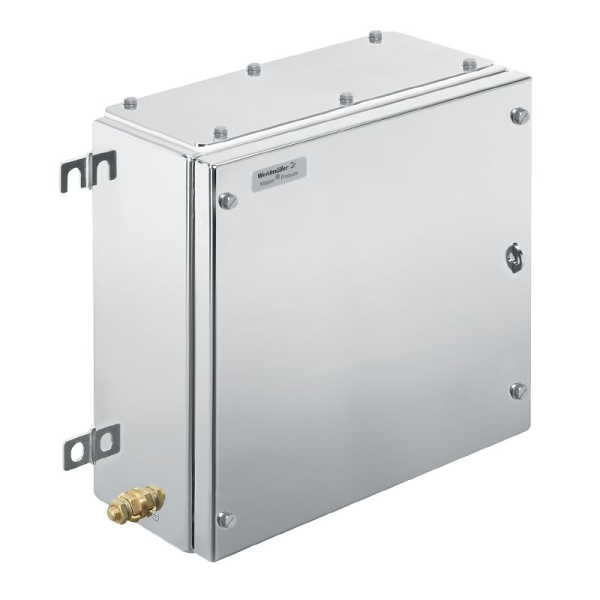

A premium stainless-steel enclosure, the Weidmüller Klippon® TB MH 303015 S4E1 is made to offer reliable protection for electrical components in harsh settings.
The Klippon® TB MH series, of which this enclosure is a member, is renowned for its dependability and adaptability.
Its multiple hinge design facilitates easy access to and maintenance of the encased components.
Because of the electropolished finish's corrosion resistance, it can be used in both indoor and outdoor settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Stainless steel 1.4404 (316L), electropolishedDimensions:
Height: 306 mm.
Width: 306 mm.
Depth: 150 mm.
Protection Class: IP66 / IP67.
Gland Plates: Bottom.
Mounting:
4 welded mounting feet with 11 mm holes.
M6 stainless-steel earth stud in enclosure body and lid.
Temperature Range: -60 °C to +135 °C.
Impact Resistance: 7 J (ATEX applications), 10 J (industrial applications).
Certifications: ATEX, IECEx, cULus.
