KTB MH 916120 S4E1
SKU: 1195560000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

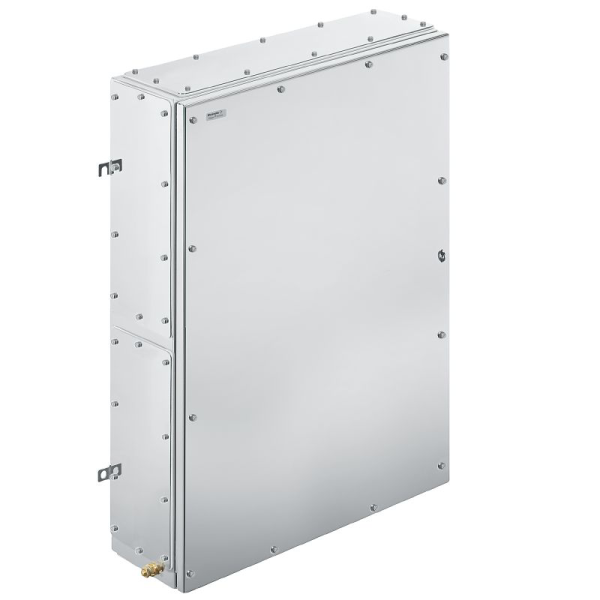

A premium stainless-steel enclosure, the Weidmüller Klippon® TB MH 916120 S4E1 is intended for industrial applications needing sturdy and dependable protection.
This enclosure is a member of the Klippon® TB MH series, which is renowned for its robustness and ability to withstand challenging climatic conditions.
This enclosure is perfect for housing electrical and electronic components in challenging environments since it is made of stainless steel 1.4404 (316L) and electropolished for increased corrosion resistance.
Long-term performance and dependability are guaranteed by its multi-hinge design, which makes maintenance and access simple.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Item Number: 1195560000.
Material: Stainless steel 1.4404 (316L), electropolished.
Colour: Silver.
Dimensions:
Height: 914 mm (35.984 inches).
Width: 610 mm (24.016 inches).
Depth: 200 mm (7.874 inches).
Mounting Dimensions:
Height: 559 mm.
Width: 636 mm.
Net Weight: 23,840 g.
Protection Class: IP66 (limited to IP66 protection when used in temperatures greater than 105°C).
Temperature Range:
Maximum: 135°C.
Minimum: -60°C.
Gland Plates: Bottom.
Mounting Feet: 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet).
Earth Stud: Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Certifications:
EU Declaration of Conformity.
UKCA Declaration of Conformity.
Attestation of Conformity for railway applications.
