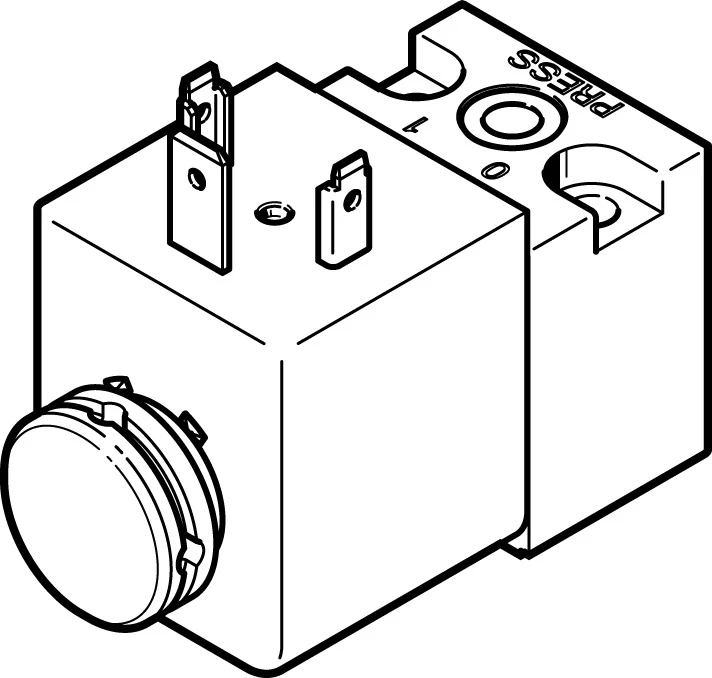

Pilot valve, MDH-3/2-110VAC

Specifications • Standards-based valves to ISO 5599-1, square plug type A • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 30 mm • Standard nominal flow rate (standardised to DIN 1343) 50 l/min • Pneumatic working port Sub-base size 30 mm to ISO 15218 • Operating voltage 110V AC • Operating pressure 0.1 MPa ... 1.6 MPa • Operating pressure 1 bar ... 16 bar • Operating pressure 14.5 psi ... 232 psi • Design Poppet seat • Type of reset Mechanical spring
