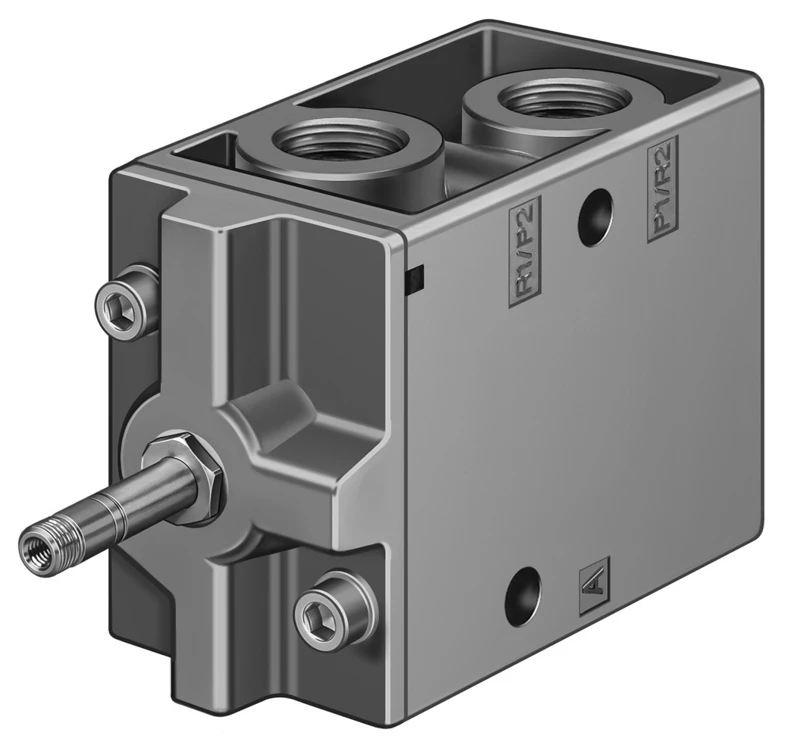

Solenoid valve, MFH3-3/4-S

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 68 mm • Standard nominal flow rate (standardised to DIN 1343) 7500 l/min • Pneumatic working port G3/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure -0.095 MPa ... 1 MPa • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • Approval c UL us - Recognized (OL) • Degree of protection IP65 • Nominal size 19 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
