KTB QL 221513 S4E1 Empty Stainless Steel Enclosure
SKU: 1199860000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

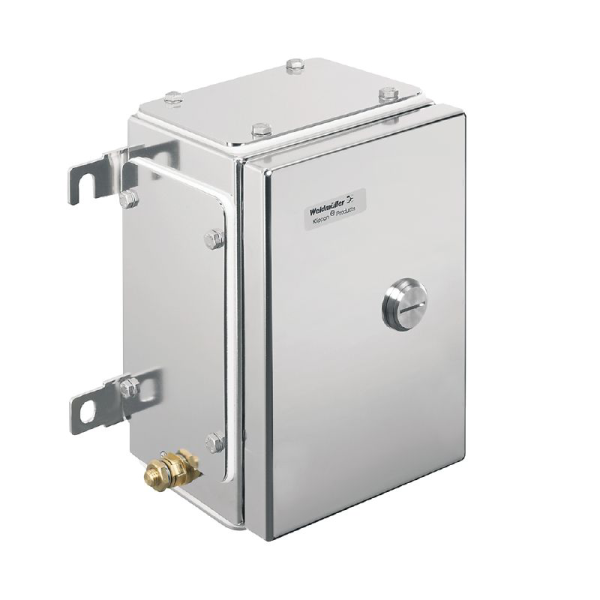

The Weidmüller Klippon® TB QL 221513 S4E1 is a high-end stainless-steel enclosure designed to provide dependable protection for electrical components in challenging environments.
The enclosures from the Klippon® TB QL series are well known for their versatility and dependability. This one is not any different.
The quarter-turn lock mechanism makes it simple to access and maintain the confined components.
The electropolished finish is suitable for both indoor and outdoor use due to its resistance to corrosion.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Stainless steel 1.4404 (316L), electropolished.
Dimensions:
Height: 229 mm.
Width: 152 mm.
Depth: 133 mm.
Protection Class: IP66.
Gland Plates: Bottom, top, left, right.
Mounting:
4 welded mounting feet with 11 mm holes.
M6 stainless-steel earth stud in enclosure body and lid.
Temperature Range: -60 °C to +135 °C.
Impact Resistance: 7 J (ATEX applications), 10 J (industrial applications).
Certifications: ATEX, IECEx, cULus.
