KTB QL 352615 S4E1
SKU: 1200120000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

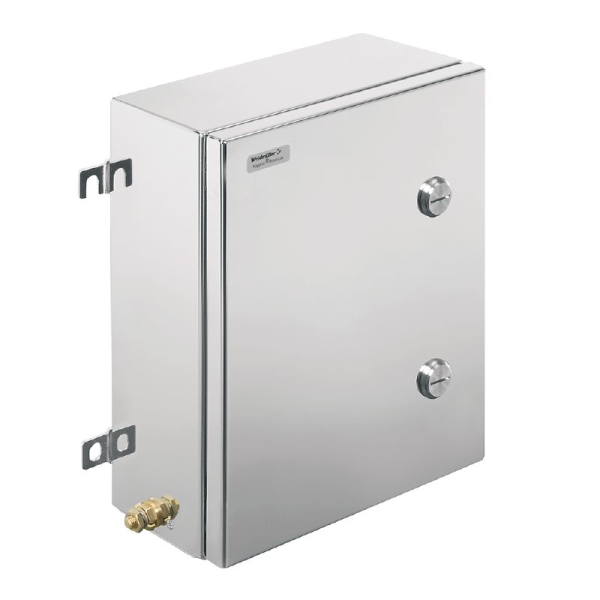

A premium stainless-steel enclosure, the Weidmüller Klippon® TB QL 352615 S4E1 is made to offer reliable protection for electrical components in harsh settings.
The Klippon® TB QL series enclosures are renowned for their dependability and adaptability. This one is no exception.
The contained components may be easily accessed and maintained thanks to the quarter-turn lock mechanism.
Because of the electropolished finish's corrosion resistance, it can be used in both indoor and outdoor settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Stainless steel 1.4404 (316L), electropolished.
Dimensions:
Height: 350 mm.
Width: 260 mm.
Depth: 150 mm.
Protection Class: IP66.
Gland Plates: Bottom.
Mounting:
4 welded mounting feet with 11 mm holes.
M6 stainless-steel earth stud in enclosure body and lid.
Temperature Range: -60 °C to +135 °C.
Impact Resistance: 7 J (ATEX applications), 10 J (industrial applications).
Certifications: ATEX, IECEx, cULus.
