KTB QL 916120 S4E1
SKU: 1200950000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

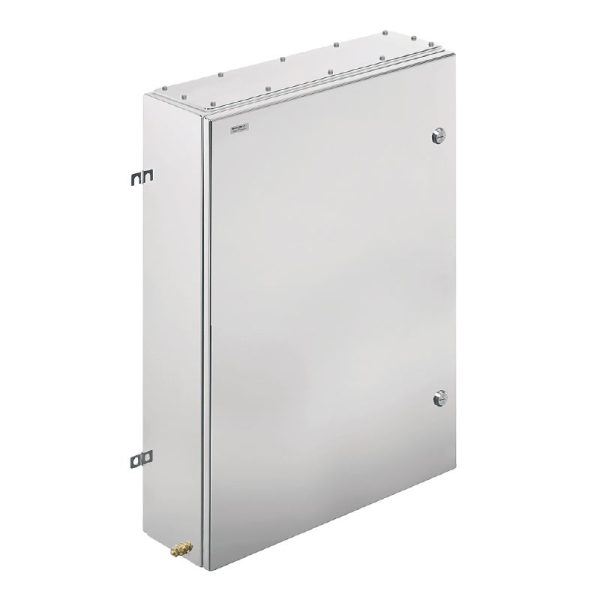

For demanding industrial applications, Weidmüller Klippon® TB QL 916120 S4E1 is a stainless-steel enclosure that is both sturdy and adaptable.
This enclosure is a member of the Klippon® TB QL series, which is renowned for its dependable performance in challenging conditions and premium build quality.
Stainless steel 1.4404 (316L), used to make the enclosure, has been electropolished to provide it exceptional resistance to corrosion and environmental elements.
Its quarter-lock design makes access safe and convenient.
The enclosure satisfies strict industrial standards and can be used for a variety of purposes, such as electrical and electronic installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Item Number: 1200950000.
Material: Stainless steel 1.4404 (316L), electropolished.
Colour: Silver.
Dimensions:
Height: 914 mm (35.984 inches).
Width: 610 mm (24.016 inches).
Depth: 200 mm (7.874 inches).
Mounting Dimensions:
Height: 559 mm.
Width: 636 mm.
Net Weight: 27,000 g.
Protection Class: IP66 (limited to IP66 protection when used in temperatures greater than 105°C).
Temperature Range:
Maximum: 135°C
Minimum: -60°C.
Gland Plates: Bottom.
Mounting Feet: 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet).
Earth Stud: Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Certifications:
EU Declaration of Conformity.
UKCA Declaration of Conformity.
Attestation of Conformity for railway applications.
