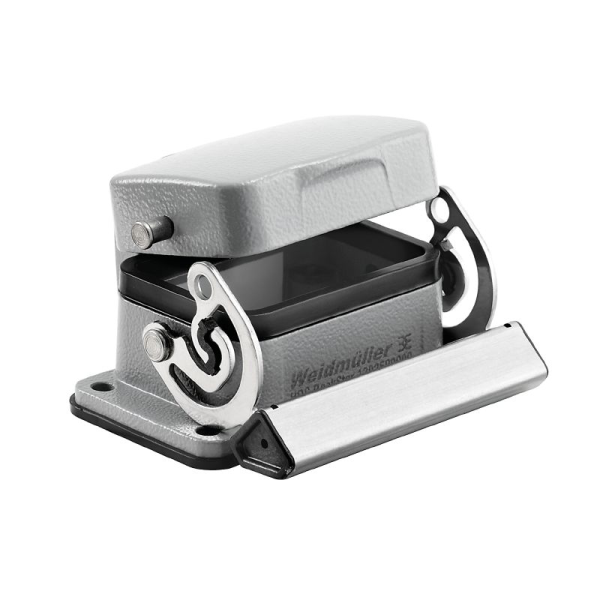

HDC 06B ADLU
SKU: 1202500000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 06B ADLU:
The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our proprietary spring system secures the housing interlock, preventing accidental opening.
The laser marking enables easy and quick identification.
Laser-marked housings provide for easy product identification and positioning.
Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Weight and Dimensions:
Height: 47 mm.
Width: 68 mm.
Hole pitch length A2: 70 mm.
Width housing C: 43 mm.
Width base C1: 45 mm.
Total length housing: 60 mm.
Height of base B1: 6 mm.
Height of housing B: 29 mm.
Mounting dimension – height: 32 mm.
Mounting dimension – width: 70 mm.
Net weight: 159.28 g.
Temperatures:
Limit temperature -40 °C to 125 °C.
Tightening torque: 1.2 Nm
Housing main material: diecast aluminium.
Surface finish: Powder coating.
Protection degree: IP65, in plugged condition.
Protection class note: Protection class with secured cover: IP 65.
EMC housings: No.
Material of locking element: Stainless steel, rust-proof.
Version:
Top part/bottom part/lid: lower part.
Cover with cover.
Tightening torque: 1.2 Nm.
Design of cover: with cover.
Design of housing: Bulkhead housing.
Design of locking system: End-locking clamp, lower side, End-locking clamp not replaceable.
Design: Standard.
Size: 3.
Clamp version: End-locking clamp.
Type: Bulkhead (feed-through).
Sealing: NBR.
Colour (RAL): RAL 7035.
BG: 3.
Suitable for ModuPlug®: Yes.
Product information: When mounting the housings, make sure that the flat gasket is correctly seated.
