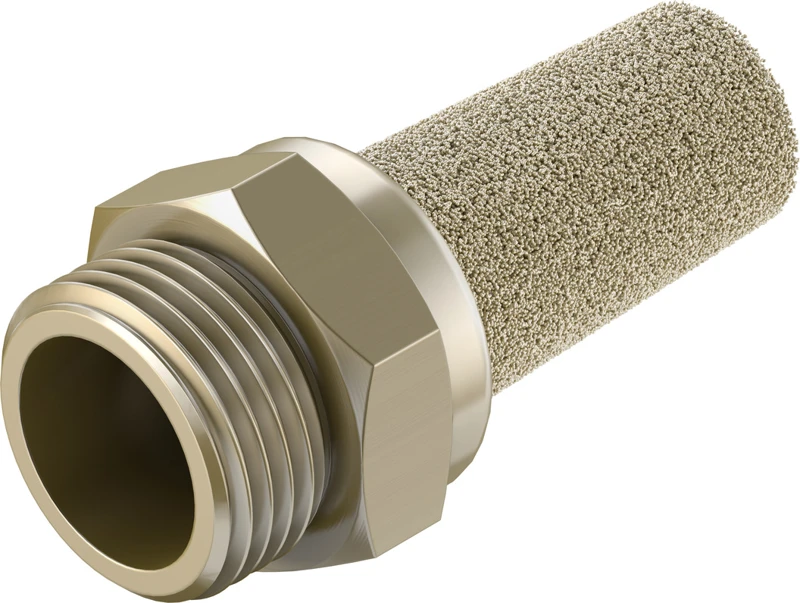

Silencer, AMTE-M-LH-G38
SKU: 1205862
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Silencers AMTE
• Mounting position optional
• Size of pack 10
• Symbol 00991473
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Flow rate to atmosphere 5430 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Sound pressure level 82 dB(A)
• Ambient temperature -40 °C ... 80 °C
Buy currently uses Select Automation shop pricing and checkout.
Silencers AMTE
• Information on silencer insert materials: Bronze
• Pneumatic connection: G1, G1/2, G1/4, G1/8, G3/4, G3/8, M3, M5, NPT1/2-14, NPT1/4-18, NPT1/8-27, NPT3/8-18, UNF10-32
• Noise level: 55 ... 95 dB(A)
• Long or short design
• Metal version
• Operating medium: compressed air
• High temperature resistance up to 80 °C
• Slim overall width
• Many different variants
• Universal applications
• Suitable for reducing noise at the exhaust ports of pneumatic systems
