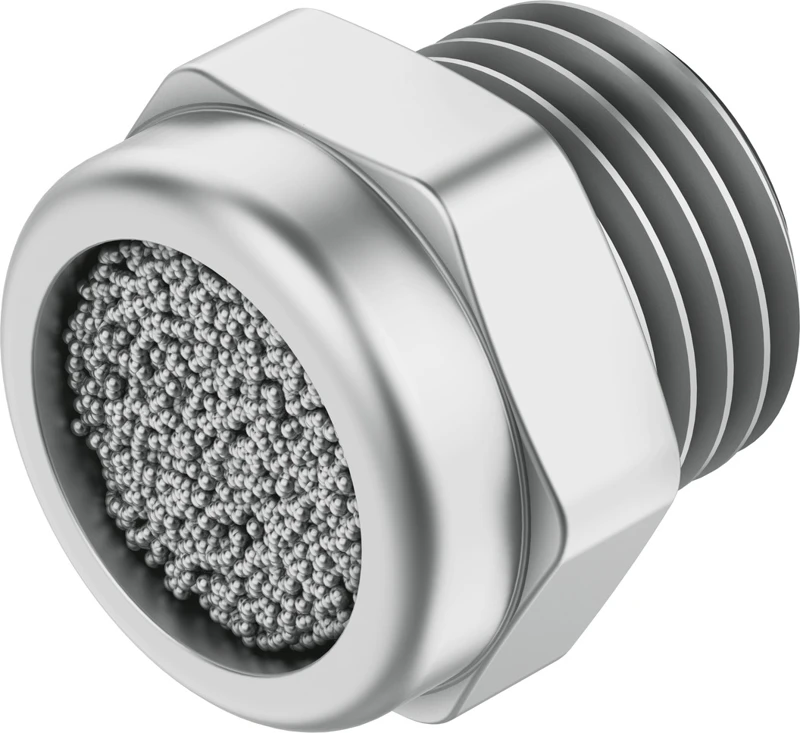

Silencer, AMTE-M-H-G18

Specifications • Silencer AMTE • Mounting position optional • Size of pack 20 • Symbol 00991473 • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Flow rate to atmosphere 615 l/min • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Sound pressure level 92 dB(A) • Ambient temperature -40 °C ... 80 °C
