Parallel kit, EAMM-U-60-D32-57A-91
SKU: 1210419
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel kit
• Size 60
• Mounting position optional
• Gear unit ratio 1:1
• Max. rotational speed 6000 rpm
• LABS (PWIS) conformity VDMA24364-B2-L
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP40
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 26.7 kgmm²
• Frictional torque independent of load 0.07 Nm
• Transmittable torque 3 Nm
• Product weight 1160 g
• Interface code, actuator D32B
• Interface code, motor in 57A
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.

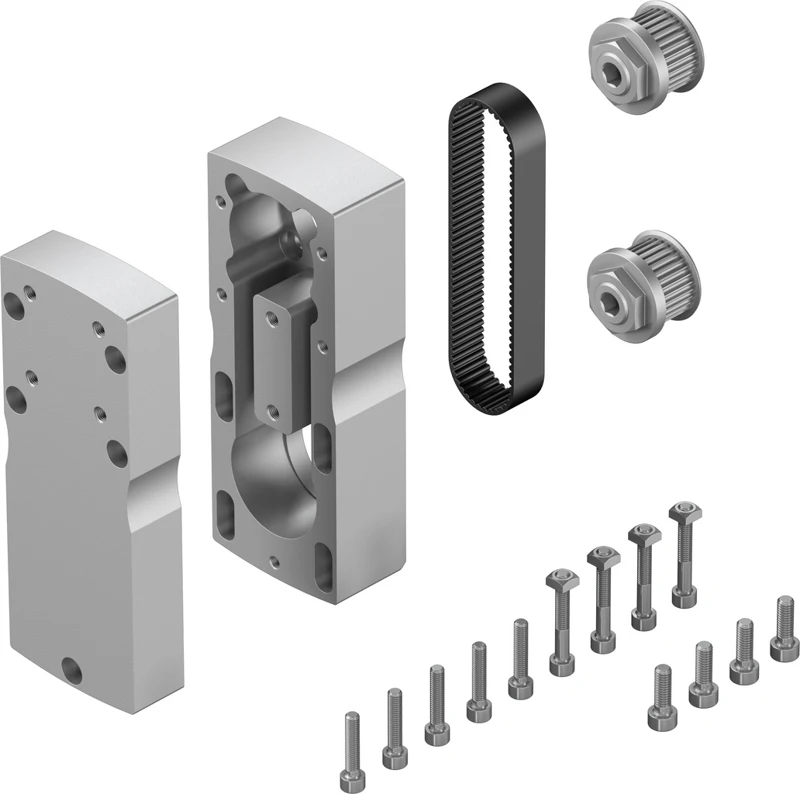

Parallel kit
• Increased housing rigidity
• More flexible motor mounting possible
• Larger toothed belt bending radii for improved service life
• Components can be mounted to the kit facing any direction
• Use in combination with third-party motors on request
