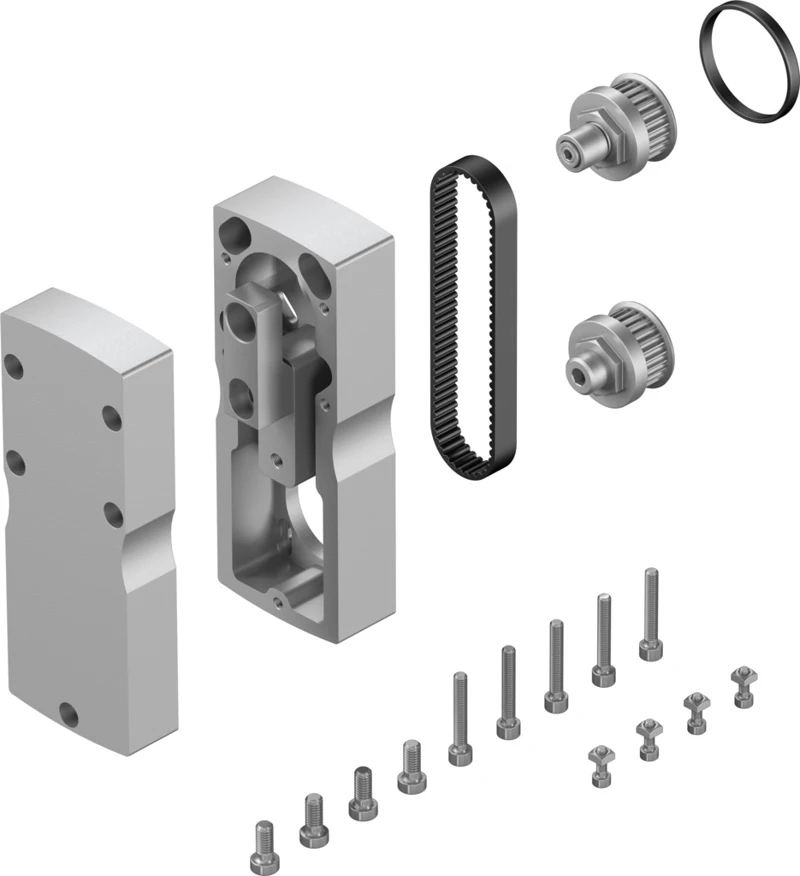

Parallel kit, EAMM-U-50-S38-40A-78

Specifications • Parallel kits EAMM-U-...-D/S • Permissible axis/motor combinations with ball screw (spindle) axis ELGA-BS • Permissible axis/motor combinations with ball screw (spindle) axis EGC-BS • Permissible axis/motor combinations with ball screw (spindle) axis with heavy-duty guide EGC-HD-BS • Size 50 • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 6000 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 12.1 kgmm² • Frictional torque independent of load 0.01 Nm • Transmittable torque 1 Nm • Product weight 580 g • Interface code, actuator S38 • Interface code, motor in 40A • Note on materials RoHS-compliant
