Sprint 1220i Compact DC Drives Series
SKU: 1220i
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

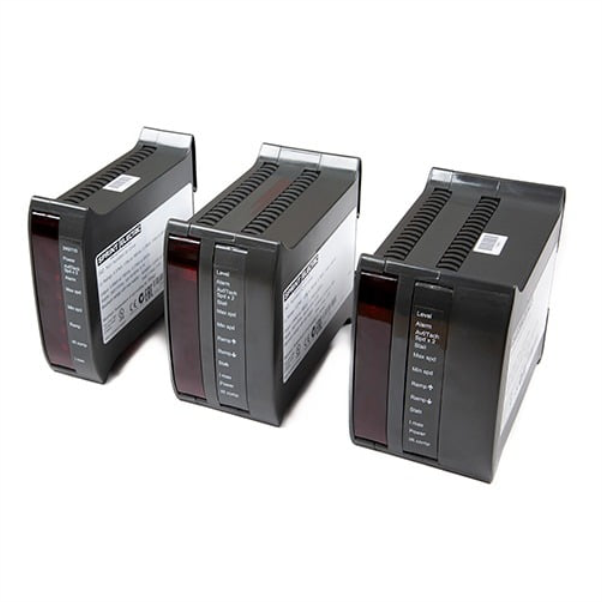

The Sprint 1220i Compact DC Drive, which is intended to regulate small brushed or permanent magnet DC motors, is a member of the Sprint Electric 340/680/1220 Series.
The ultra-compact DIN rail mounting of this drive is well-known for saving panel space and facilitating simple installation.
The 1220i model is appropriate for DC motors with an output power of up to 1.8kW since it can offer an output current of up to 12.2A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: Up to 1.8kW (2HP).
Output Current: 12.2A.
Mounting: DIN rail.
Cooling: Fully isolated control electronics.
Adjustable IR Compensation: For improved AVF speed regulation.
Selectable Dual Voltage AC Supply: 100-130V or 200-264V.
User Adjustable: Max motor speed, min motor speed, up ramp, down ramp, stability, Imax, IR comp, AVF/Tach switch, speed range switch, AC voltage selector, signal level comparator.
Protection: 150% overload with stall protection.
Additional Features: Push-button reversing function, easy to access drive adjustments, plug-on screw terminals.
