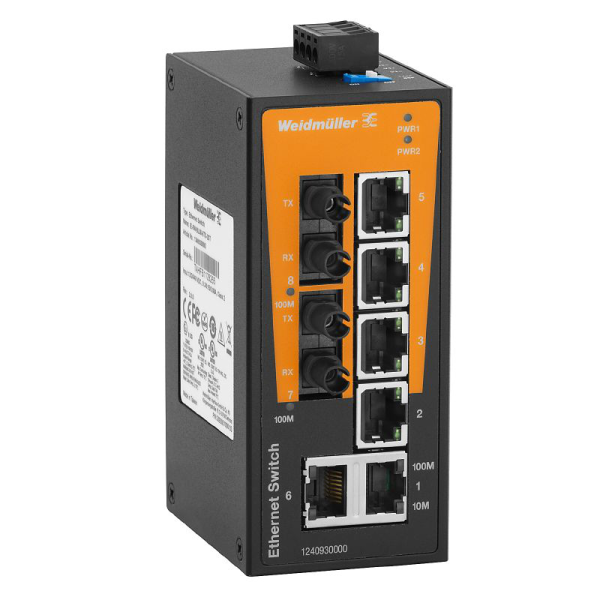

IE-SW-BL08-6TX-2ST
SKU: 1240930000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
IE-SW-BL08-6TX-2ST:
Fast Ethernet, network switch, unmanaged.
Number of ports: 4x RJ45, IP30, -10°C to 60°C.
Variations including 5 or 8 ports.
Gigabit Ethernet Variations.
Durable metal casing.
A compact design.
Two redundant power inputs (12/24/48 V DC).
Variations in copper and fiber-optic interfaces (multi-mode and single mode).
Our extensive approvals include CE, FCC, cULus, Class I Div. 2, ATEX Zone 2, and DNV-GL.
PN48 ISwitch Filter criteria:
Highest speed: Fast Ethernet.
Input voltage type: DC.
Mounting type: DIN- Rail.
Type of switch: Unmanaged.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 70 mm.
Depth (inches): 2.756 inch.
Height: 115 mm.
Height (inches): 4.528 inch.
Width: 50 mm.
Width (inches): 1.181 inch.
Net weight: 275 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -10 °C - 60 °C.
Humidity: 5 to 95 % (non-condensing).
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 9229992a-00b9-4096-8962-200a7f33e289.
EMC conformity and approvals:
EMC standards: EN 55032, EN 55035, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz - 6 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100A/m.
Explosive risk zone: UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc.
Free fall: According to IEC 60068-2-32.
Safety standard: UL508.
Ship use: DNV.
Shock: according to IEC 60068-2-27.
Vibration: according to IEC 60068-2-6.
Environmental conditions:
Humidity: 5 to 95 % (non-condensing).
Operating temperature, max.: 60 °C.
Operating temperature, min.: -10 °C.
Storage temperature, max.: 85 °C.
Storage temperature, min.: -40 °C.
Fibre optic transceiver characteristics:
Transmission rate: 100 Mbps.
Transceiver type: Multi mode.
Connector type: ST-Duplex.
Transmission distance, typ.: 5 km.
Wavelength:
typ.: 1,300 nm.
Wavelength: TX.
min.: 1,260 nm.
max.: 1,360 nm.
Wavelength: RX.
min.: 1,100 nm.
max.: 1,600 nm.
Receive power:
min.: -32 dBm.
max.: -3 dBm.
Transmission power:
min.: -32 dBm.
max.: -3 dBm.
Link-budget: 12 dB.
Guarantee:
Time interval: 5 years.
Interfaces:
Fibre-optic ports: 100BaseFX ports (SC connector), multimode.
Function DIP switch: 1x for enabling/disabling the broadcast storm protection.
LED indicator: PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port).
Number of ports: 6 x RJ45, 2 * SC Single-mode.
RJ45 ports: 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.
MTBF:
According to Standard: Telcordia (Bellcore), GB.
Operating time (hours), min.: 2,428,212 h.
Power supply:
Connection type: 1 removable 4-pin terminal block.
Current consumption: 0.22 A at 24 V.
Overload current protection: 1.1 A.
Reverse polarity protection: Available.
Voltage supply: 12/24/48 V DC, 2 redundant inputs.
Voltage supply range:
Voltage type: DC.
Voltage, min.: 9.6 V.
Voltage, max.: 60 V.
Switch characteristics:
Bandwidth backplane: 1.6 Gbit/s.
MAC table size: 2 K.
Packet buffer size: 768 kBit.
Technical data:
Housing main material: Aluminium.
Protection degree: IP30.
Speed: Fast Ethernet.
Switch: unmanaged.
Type of mounting: DIN rail.
Technology:
Data switching: Store and Forward.
Flow control: IEEE 802.3x flow control, Back pressure flow control.
Standard: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control.
