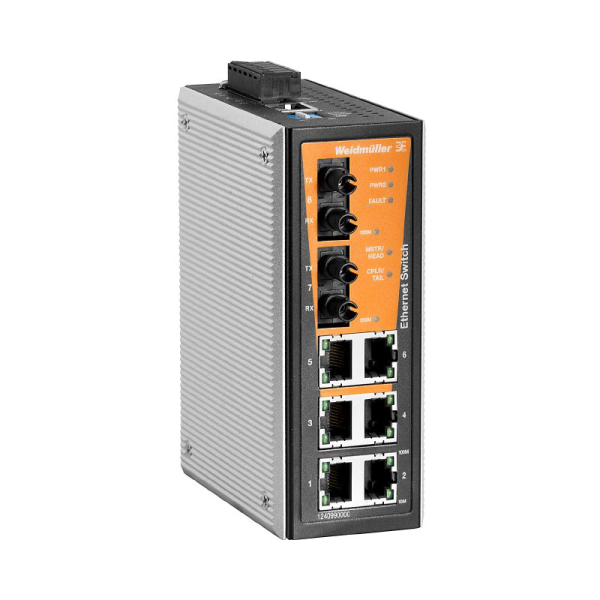

IE-SW-VL08MT-6TX-2ST
SKU: 1240990000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Weidmuller's Value Line includes both unmanaged and managed switches in a high-quality metal enclosure with an IP 30 rating.
The equipment can be supplied with Fast Ethernet and Gigabit Ethernet interfaces.
Many useful management features, like quick ring redundancy, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and error alerting via email or a relay, are supported by Value Line managed switches.
Either the web-based management interface or the dip switch located on top of the switch can be used to easily adjust the ring redundancy.
Unmanaged plug-and-play switches in a high-quality aluminum enclosure (IP 30).
Price-conscious mid-range.
Managed switches for connecting to a flexible network architecture.
A fully unmanaged gigabit switch with eight ports.
CE, FCC, cULus, Class I Div. 2, ATEX, DNV, and GL approvals.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Network switch, managed, Fast Ethernet.
Quantity: 1.
Depth: 105 mm.
Height: 135 mm.
Width: 53.6 mm.
Storage temperature: -40 °C...85 °C.
Operating temperature range: -40 °C...75 °C.
Environmental conditions:
Humidity: 5 to 95 % (non-condensing).
Operating temperature, max.: 75 °C.
Operating temperature, min.: -40 °C.
Storage temperature, max.: 85 °C.
Storage temperature, min.: -40 °C.
Interfaces:
Alarm contact: 1 relay output with a current capacity of 1 A at 24 V DC.
Console port interface: RS-232.
Fiber-optic ports: 100BaseFX ports (ST connector), Multimode.
Function DIP switch: Turbo-Ring, Master, Coupler, Reserve.
PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port), 100M (fiber-optic port).
Number of ports: 6x RJ45, 2 ST Multi-mode.
RJ45 ports: 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.
Power supply:
Connection type: 1 removable 6-pin terminal block.
Current consumption, Voltage: 24 V.
Current consumption, Current: 0.35 A.
Overload current protection.
Reverse polarity protection.
Voltage supply: 12/24/48 V DC, 2 redundant inputs.
Voltage type: DC.
Voltage, min.: 9.6 V.
Voltage, max.: 60 V.
Technical data:
Housing main material: metal.
Protection degree: IP30.
Speed: Fast Ethernet.
Switch: managed.
Type of mounting: DIN rail, Panel (with optional mounting kit).
