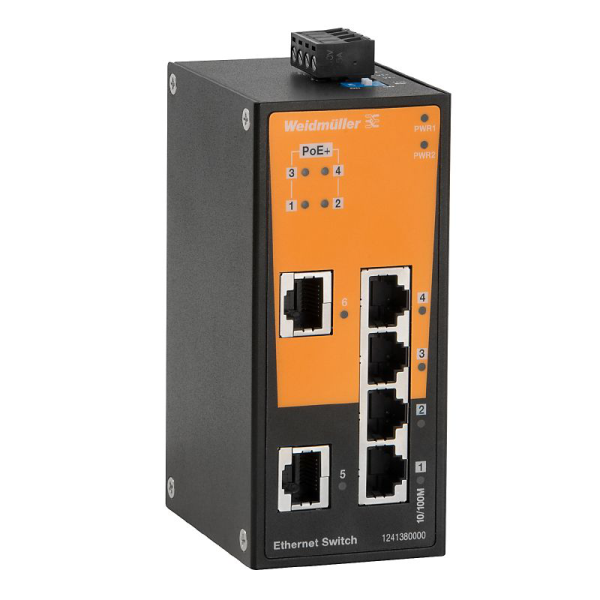

IE-SW-BL06-2TX-4POE
SKU: 1241380000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
4 x IEEE 802.3af/at PoE ports.
Wide-ranging power supply with 12/24/48 VDC redundancy.
48-V PoE devices can be supplied by an integrated DC/DC converter across the whole input voltage range of 12 to 57 VDC.
Intelligent power consumption detection and classification.
Variations between copper and fiber-optic interfaces (multimode and single mode).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Network switch, unmanaged PoE, Fast Ethernet.
Quantity: 1.
Depth: 70 mm.
Height: 114 mm.
Width: 50 mm.
Storage temperature: -40 °C...85 °C.
Operating temperature range: -10 °C...60 °C.
Environmental conditions:
Humidity: 5 to 95 % (non-condensing).
Operating temperature, max.: 60 °C.
Operating temperature, min.: -10 °C.
Storage temperature, max.: 85 °C.
Storage temperature, min.: -40 °C.
Interfaces:
Function DIP switch: Broadcast storm protection enable/disable.
LED indicator: PWR1, PWR2, 10/100M (TP-Port), PoE.
Number of ports: 2 RJ45 10/100 Base T (X), 4 RJ45 10/100 Base T (X) PoE+.
RJ45 ports: 10/100 Base T (X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port.
PoE output current:
Standard: IEEE 802.3af.
Output current: 350 Ma.
Standard: IEEE 802.3at.
Output current: 600 mA.
PoE output power:
Standard: IEEE 802.3af.
Output power: 15.4 W.
Standard: IEEE 802.3at.
Output power: 30 W.
PoE pin assignment:
Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI.
Total PoE power budget:
Voltage type: DC.
Voltage, min.: 12 V.
Voltage, max.: 17 V.
Power budget: 62 W.
Voltage type: DC.
Voltage, min.: 18 V.
Voltage, max.: 57 V.
Power budget: 120 W.
Power supply:
Connection type: 1 removable 4-pin terminal block.
Inrush current: 64.56 A at 48 V DC (0.1 to 1 MS).
Overload current protection.
Power consumption: max. 13.2 W (without PD´s consumption).
Power loss: 36.4 BTU/h.
Reverse polarity protection.
Voltage supply: 12/24/48 V DC, 2 redundant inputs.
Current consumption:
Voltage: 12 V.
Current: 6.19 A.
Voltage: 24 V.
Current: 5.55 A.
Voltage: 48 V.
Current: 2.71 A.
Voltage supply range:
Voltage type: DC.
Voltage, min.: 12 V.
Voltage, max.: 57 V.
Technical data:
Housing main material: Aluminum.
Protection degree: IP30.
Speed: Fast Ethernet.
Switch: unmanaged PoE.
Type of mounting: DIN rail.
